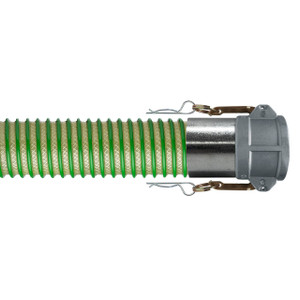

Kanaflex flexFUEL U 120 ST 4 in. Tank Truck Drop Hose Assemblies w/ Part C Female Coupler x Part E Male Adapter Ends

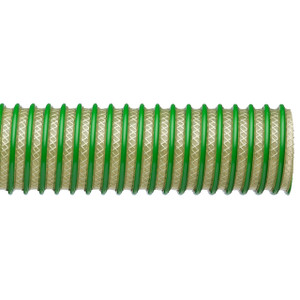

The Kanaflex FlexFUEL U 120 ST polyurethane tank truck drop hose is built for durability and flexibility, even in sub-zero temperatures. It features a static dissipating polyurethane inner and outer tube that resists gasoline, biodiesel, ethanol, kerosene, diesel, and ASTM fuel oils. The clear tube allows you to visually confirm flow, making it easy to monitor your transfer process.

This hose is ideal for gravity drop applications and comes in various sizes with a smooth bore and corrugated O.D. for easy dragging. A multi-strand copper static wire provides maximum protection against static discharge. Remember to install a banding coil or sleeve at the end of the hose to prevent over flexing. For optimal performance, ensure proper static grounding by embedding the static wire during fitting installation.

Features

• Lightweight and Flexible: Even in sub-zero temperatures, this hose remains easy to handle and maneuver.
• Superior Fuel Resistance: Built with a static dissipating polyurethane inner and outer tube, it resists gasoline, biodiesel, ethanol, kerosene, diesel, and ASTM fuel oils.
• Visual Flow Confirmation: The clear tube allows you to easily see the flow of fuel for better monitoring.
• Durable Construction: Featuring a synthetic braided outer layer and multi-strand copper static wire, this hose is built to last.

Specifications

• ID: 4 in. (101.6 mm)
• OD: 4.81 in. (122.2 mm)
• Pitch: 0.68 in. (17.3 mm)
• Minimum Bend Radius: 7.0 in. (177.8 mm)
• Working Pressure (72°F): 65 PSI (4.48 bar)
• Vacuum Rating (72°F): 29.8 in Hg (100.91 kPa)
• Weight: 1.87 lbs/ft (2.78 kg/m)
• Material: Non-permeable polyurethane inner and outer tube with synthetic braiding, smooth bore, corrugated O.D., PVC helix for easy drag, clear static dissipating tube
• Static Protection: Multi-strand copper static wire
• Temperature Range: -52°F to 140°F (-46.7°C to 60°C)
• Color: Clear
