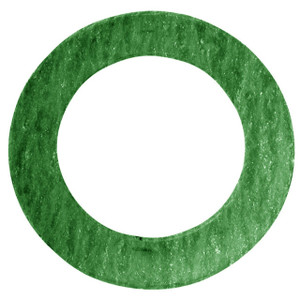

JME 8 in. x 1/8 in. Thick Fiber 150# Ring Flange Gasket

JME 1/8 in. Thick Fiber 150# Ring Flange Gasket Description

The JME 1/8 in. Thick Fiber 150# Ring Flange Gasket is engineered from Klingersil® C-4401, a premium synthetic fiber renowned for its exceptional sealability, chemical resistance, and creep relaxation. Designed for use with raised face flanges, this gasket ensures a robust and reliable seal in various industrial applications. With a maximum temperature tolerance of 750°F and a maximum working pressure of 1,450 PSI, it is ideal for high-demand environments.

Features

• Material: Constructed from Klingersil® C-4401, a non-asbestos synthetic fiber.
• Sealability: Offers excellent sealability and chemical resistance.
• Durability: Provides superior creep relaxation for long-lasting performance.
• Compatibility: Suitable for use with raised face flanges.

Specifications

• Flange Type: 150#
• Material: Fiber
• Maximum Temperature: 750°F
• Maximum Working Pressure: 1,450 PSI
• Product Type: Ring Flange Gasket
• Ring Thickness: 1/8 in.
• Size: 8 in.
• Thickness: 1/8 in.
• Type: 150#
