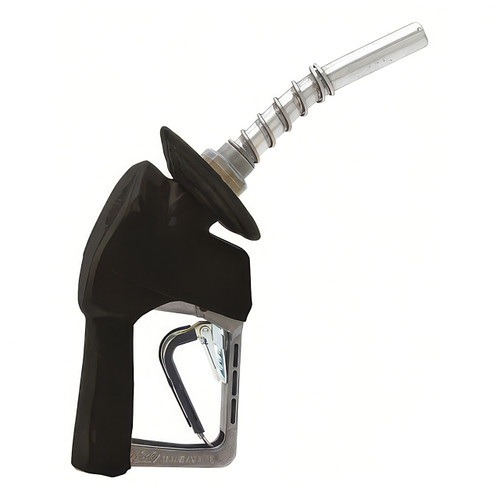

Husky XS Series 3/4 in. Activated Unleaded Auto Nozzle w/ Three Notch Hold Open Clip & Splash Guard- UL Listed, Black

Husky XS Series 3/4 in. Pressure Activated Unleaded Auto Nozzle w/ Three Notch Hold Open Clip & Splash Guard- UL Listed, Black Description

Husky 159559N XS® Pressure Activated Automatic Shut-Off Unleaded Nozzle is used for full-service and self-service stations. The XS® unleaded nozzle has a 3/4'' NPT Inlet and has pressure activated automatic shut-off with three notch hold open clip, full grip guard and 001808 waffle splash guard.

The nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill tank or rises above the horizontal. Husky XS® nozzle shuts off when the pump shuts off, the gas tank is full, the lever is opened before the pump is turned on, or the leak detector has not completed its test cycle.

Features

• XS® nozzle shuts off-When the pump shuts off, gas tank is full, lever is open before the pump is turned on and if the leak detector has not completed the test cycle
• Nozzle is equipped with Flo-Stop® device-The nozzle shuts off or if it falls from the fill neck or raises above the horizontal
• Stainless steel spout-Has a reinforced stainless steel bushing keeps the spout tip round and acts as a captive fastener to prevent tip-end sensor damage
• StreamShaper®-Helps reduce turbulence for straighter fuel flow and less splash back spillage
• Tilt poppet-provides precise dispensing
• ADA compliant EZ Lever-reduces the force required to open the main poppet valve by 50%, lever operating force less than 5 lbs.

Specifications

• XS Series Nozzle
• 3/4 in. NPT inlet
• Automatic Shut Off
• Flow Rate: 15 GPM
• Spout: 13/16 in. OD
• Spout Length: 7 in.
• Max. Operating pressure: 25 PSI
• Temperature range: -20°F to 140°F
• 3 Latch positions
• Includes: 1808 waffle splash guard and smooth full grip guard
• Color: Black
• One-piece die cast aluminum
• Chemical Compatibility: Av Gas, Biodiesel, Diesel, E10, E15, Fuel Oil, Gasoline, Jet Fuel and Kerosene
