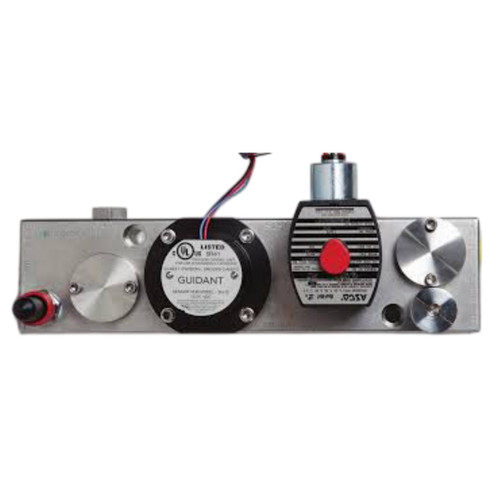

Honeywell Enraf GDHELA05100E370D0 Mono-Block II - Low Flow

Honeywell Enraf GDHELA05100E370D0 Mono-Block II - Low Flow Description

The Honeywell Enraf GDHELA05100E370D0 Mono-Block™ II+ is a precision-engineered chemical injection unit designed for low-flow additive injection in demanding industrial environments. This model is a specific configuration of the Mono-Block™ II+ platform, widely deployed in terminal loading racks, fuel distribution systems, chemical storage facilities, and aviation fuel delivery operations. Manufactured by Honeywell Enraf, the unit provides highly accurate and repeatable injection performance while maintaining robust construction and secure operation. Optimized for low-flow applications, it integrates precise flow control, tamper-resistant design elements, and unidirectional flow assurance to support consistent additive dosing and regulatory compliance across critical industrial processes.

Features

• Low-Flow Optimization: Integral adjustable needle valve in the discharge port allows precise regulation for low-flow additive injection applications.
• Flow Direction Control: Internal design ensures additive flow moves in only one direction for consistent injection performance.
• High Accuracy Metering: Engineered for reliable and repeatable dosing in critical additive injection systems.
• Security Design: Tamper-proof construction with seal wire screws on valve cover plates to protect calibration integrity.
• System Versatility: Serves as a modular building block for both smart injector and slave injector system configurations.

Specifications

• Brand: Honeywell
• Identifier: HELA05100E370D0
• Material: 303 Stainless Steel Block
• Max Flow Rate: 2.5 Gal/Min (9.5 L/Min)
• Max Pressure: 400 PSI (27.6 Bar)
• Meter Accuracy: ±0.50%
• Meter Repeatability: 0.25%
• Min Flow Rate: 0.1 Gal/Min (0.38 L/Min)
• Nominal K-Factor: 5000 PPG
