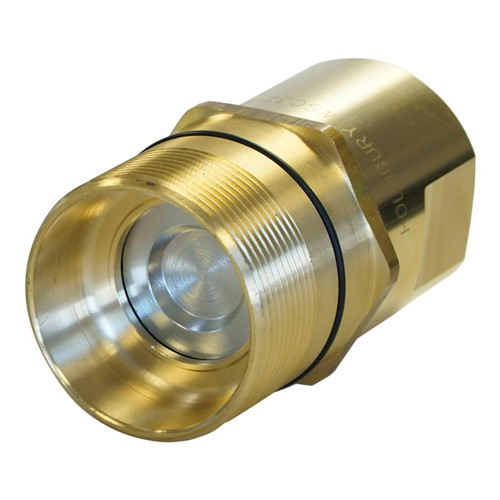

Holmbury WSC32-F-20N 1 1/4 in. Brass Screw Coupling 1 1/4 NPTF W/ Nitrile Rubber Seal - Female

Description

Holmbury's WSC Series brass screw to connect couplings are designed to allow connection and disconnection by hand. The brass construction makes them the idea choice for water based applications.

Note: Male and female couplings are sold separately.

Features

• Can be connected with 50 bar (735 psi) residual pressure in the hydraulic circuit
• Bidirectional flow
• Operating temperatures (With NBR seals): -40°C (-40°F) to 106°C (223°F)
• Brass body
• Wing nut carbon steel with trivalent plating
• Fitted with NBR seals

Specifications

• Brand: Holmbury
• Series: WSC Series
• Part Number:WSC32-F-20N
• Body Size: 1 1/4 in.
• Body Material: Brass W/ carbon steel Wing nut
• Operating Temp: -40°C (-40°F) to 106°C (223°F)
• Seal material: NBR
• Flow-Rate: 76 GPM
• Flow-Rate: 288 LPM
• Thread Size: 1 1/4 NPTF
• Thread Type: NPTF
• Maximum working pressure (Coupled): 190 BAR
• Maximum working pressure (Coupled): 2755 PSI
• Burst pressure (Coupled): 650 BAR
• Burst pressure (Coupled): 9425 PSI
• Burst pressure (Male *): 650 BAR
• Burst pressure (Male *): 9425 PSI
• Burst pressure (Female **): 600 BAR
• Burst pressure (Female **): 8700 PSI

Applications

• Trailers
• Wet line kits
• Offshore/onshore
