Holmbury FSC 3/4 in. Carbon Steel Flat Face Screw Coupling 1 NPTF w/ Locking Pin & Nitrile Rubber Seal

Description

Holmbury's FSC Series flat faced screw to connect couplings offer a compact, rugged connection to eliminate brinelling. An ideal solution for high pressure pulses and demanding applications.

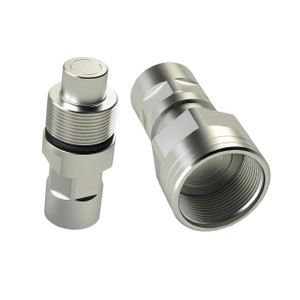

Note: Male and female couplings are sold separately. First image shows both male and female couplings.

Features

• Screw to connect design eliminates brinelling
• Integral connect under pressure feature
• Flat faces are easily wiped clean
• Allows for minimal inclusion of air and contaminants during connection
• Flat face design prevents fluid loss during disconnection
• Bidirectional flow
• Interchangeable with other leading brands. Contact Holmbury for more information
• Operating temperatures (With NBR seals): -30°C (-22°F) to 100°C (212°F)
• Dust caps, plugs and seal kits are available for the FSC Series

Specifications

• Brand: Holmbury
• Series: FSC Series
• Body Size: 3/4 in.
• Body Material: Carbon steel W/ zinc nickel plating
• Operating Temp: -30°C (-22°F) to 100°C (212°F)
• Seal material: NBR
• Flow-Rate: 26.4 GPM
• Flow-Rate: 100 LPM
• Thread Size: 1 NPTF
• Thread Type: NPTF
• Maximum working pressure (Coupled): 500 BAR
• Maximum working pressure (Coupled): 7250 PSI
• Burst pressure (Coupled): 1400 BAR
• Burst pressure (Coupled): 20300 PSI
• Burst pressure (Male *): 1400 BAR
• Burst pressure (Male *): 20300 PSI
• Burst pressure (Female **): 1050 BAR
• Burst pressure (Female **): 15225 PSI

Applications

• Trailers
• Wet line kits
• Offshore/onshore
