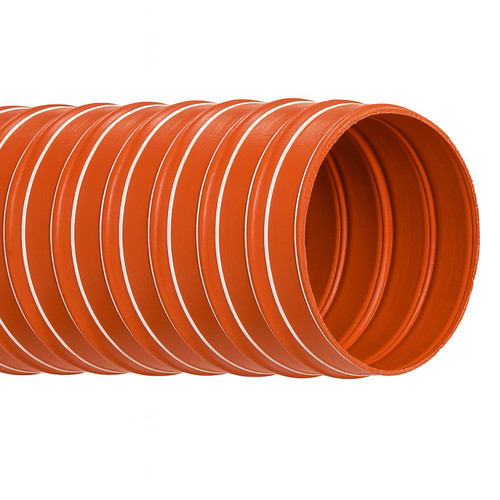

Hi-Tech Duravent Flex-Flyte L9 3 in. x 25 ft. Duct Hose, Red - Hose Only

Description

The Hi-Tech Duravent Flex-Flyte L9 is your go-to ducting solution for high-temperature air and fume removal. With a smooth interior for optimal airflow, UV resistance, and a lightweight, non-kinking design, it's ideal for aerospace and plastics processing applications like lav waste ventilation, pellet drying, and pre-launch fuel venting.

Features

• Standard Length for 3/4" is 10' lengths
• Standard duct for high temperature air flow and fume removal
• Internal ply provides a smooth interior for maximum air flow and minimum friction loss
• UV and weather resistant
• Light weight, easy to install and non-kinking
• Great for handling air, dust, fumes and light powder
• Not recommended for liquids or abrasive materials
• Available as U-9 (one-ply) for lower pressure applications
• Non-standard lengths and cuffs available, please consult factory
• Applications: Hot Air for Pellet Drying, Lav Waste Fume Removal, Pre-Launch Fuel Venting
• Industries: Aerospace, Plastics Processing

Specifications

• Brand: Hi-Tech Duravent
• Manufacturer Part Number: 0214-0300-0002
• Series: UFD
• Size: 3 in.
• Length: 25 ft.
• Color: Black
• Temperature Range: -65°F to 200°F (-53.89C to 93.33C)
• Construction: Thermoplastic polyurethane reinforced with a wire helix
• Tube Material: Thermoplastic Rubber
• Reinforcement Material: Polyurethane
• Approvals / Certification: FDA acceptable
• Working Pressure: 12 PSI
• Vacuum: >29 inHg
• CL Bend Radius: 3 1/2 in.
• Compress Ratio: 1:6
• OD Nominal: 3.32 in.
• Wall Thickness: .035 in.
• Weight: .53 lbs / ft.

Downloads

Specification Sheet (PDF Download)
