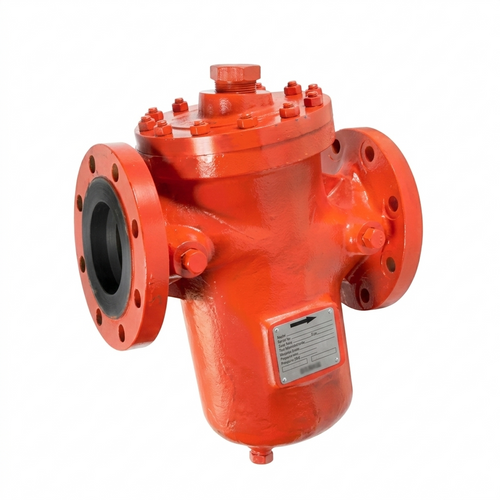

Guidant FMC 4 in. E Type 40 Mesh Basket Strainer w/ FKM Seal

This E Type 4" steel strainer is designed to protect metering systems from dirt and other foreign material. Its streamlined flow path and large screen area work together to minimize pressure drops and decrease the frequency of required cleanings. This product features a standard 40 mesh stainless steel basket, providing an effective barrier for various liquid systems.

Built for durability, this strainer includes a sturdy inner basket that can handle significant pressure differences without bursting. The basket is separable and easily removed for quick cleaning and maintenance. The housing is constructed from high‐quality cast carbon steel and can be installed in either horizontal or vertical orientations to fit your specific system requirements.

Features

• Protects sensitive equipment by capturing dirt and debris before it can cause damage.
• Features a design that allows for smooth liquid flow, which helps lower the need for frequent cleanings.
• Uses a removable stainless steel basket that makes maintenance and cleaning fast and simple.
• Built with a strong carbon steel exterior and a basket designed to handle high pressure without breaking.
• Provides flexibility for your workspace by allowing for both horizontal and vertical installation.

Specifications

• Mesh Size: 40 Mesh
• Housing Material: Cast Carbon Steel
• Basket Material: 304 Stainless Steel
• Seal Material: FKM
• Maximum Working Pressure: 285 psi (1,965 kPa)
• Flange Class: ASME Class 150 Raised Face
• Total Basket Area: 129 sq. in. (832 sq. cm)
• Mesh Opening Size: 0.015 in. (0.38 mm)
• Percent Open Area: 25.9%
• Operating Temperature (Buna-N): -20°F to 225°F (-29°C to 107°C)
• Bare Weight: 85 lb. (39 kg)
• Standards Compliance: NACE MR0175, B31.3, and CRN
• Color: Orange

Dimensions

• Size: 4 in. (101.6 mm)
• Face-to-Face Dimension (A): 13.8 in. (350 mm)
• Height from Center to Bottom (B): 11.4 in. (290 mm)
• Height from Center to Top (C): 7.9 in. (200 mm)
• Basket Removal Clearance (E): 16.1 in. (410 mm)
• Drain Connection (F): 3/4 in. NPT
• Vent Connection (G): 1-1/2 in. NPT
