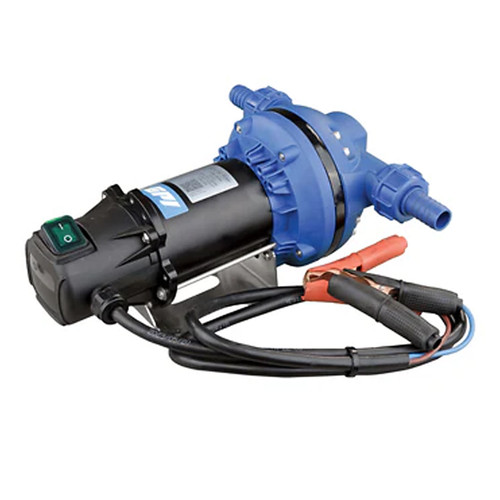

GPI DEF Specialty Utility Transfer Pump 12V DC

GPI's line of Specialty Utility Transfer Pump (180002-01) pumps DEF, antifreeze, windshield washer fluid and other water-based chemical fluids (non-flammable, water-based chemicals) efficiently. Flowing at 8 GPM, these DEF pumps are used mainly for fleet maintenance, agriculture, automotive shops, and heavy equipment service applications. Each DEF utility transfer pump from GPI are designed for use with IBC totes, bulk containers and DEF drums as direct bolt-on replacements for many of the DEF tote systems. Shop the JME site for the best selection of GPI DEF transfer pumps.

Features

• Includes a self-priming feature in the utility pumps for clean fluids
• The motor is protected by a run timer to prevent any accidental continuous operation
• Direct bolt-on replacement feature to be compatible with many of the DEF tote systems
• Fluid Compatability: Ammonium Sulfate, Anti-Freeze, DEF (Diesel Exhaust Fluid), Non-Potable Water, Water-Based Chemicals, Windshield Wash Fluid | NOT COMPATIBLE WITH PETROLEUM-BASED LIQUIDS | DO NOT USE WITH FLAMMABLE LIQUIDS

Specifications

• Flow Rate: 8 GPM
• Voltage Input: 12V DC
• Horsepower: 0.24
• Technology: Oscillating Diaphragm
• Amps Rated: 14.8 amps
• Motor Protection: 15 minute timer circuit
• Duty Cycle: 20 min.
• Power Cord: 4.5 ft.
• Max. Pressure: 23 PSI
• Operating Temperature: 23° F to 104° F
• Suction Lift: 9 ft.
• Discharge Lift: 15 ft.
• Pump Housing Material: Reinforced Nylon
• Wetted Materials: EPDM | Nylon | Stainless Steel | TPU
• Inlet & Outlet Size: 3/4 in.
• Included: 12-Volt DEF Transfer Pump, Hose barb inlet and outlet fittings, Hose clamps, Owner's manual
• Warranty: 2 year

Downloads

Specification Sheet (PDF Download)

Product Manual (PDF Download)
