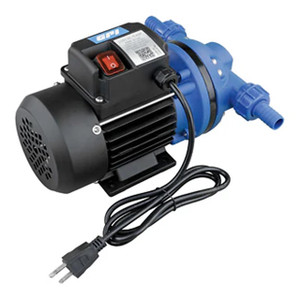

GPI DEF Specialty Transfer Pump 115V AC, Automatic Nozzle

No matter the equipment you're using on the job, it's imperative to have the proper refueling system to keep your job running smoothly and efficiently. GPI'S specialty DEF system pumps are the perfect choice for on-the-go fueling away from base. Choose from the large selection of reliable specialty fluid pumps sold only at GPI. If your job calls for DEF system pumps, choose from our selection of 115V AC specialty and utility pumps and kits. Our kits include container valves, RSV couplers, a DEF flow meter and DEF system fittings kit. Shop the JME site for the best selection of 115V AC transfer pump systems by GPI.

Features

• Quick and easy installation with the stainless steel IBC cage mounting bracket.
• Self-priming feature for quicker refills.
• Our run timer provides peace of mind, preventing accidental over-operation.
• An attached factory-installed power cord saves on the set up of the pump.
• Fill nozzle storage container with water to eliminate DEF crystallization.
• Includes a stainless steel automatic nozzle

Specifications

• Max. Flow Rate: 8 GPM
• Voltage Input: 115V AC
• Horsepower: 0.50
• Pump Technology: Oscillating Diaphram
• Amps Rated: 1.3 amps
• Motor Protection: Resetting Thermal Protector
• Duty Cycle: 20 min. (run timer 15 min.)
• Power Cord: 4.5 ft.
• Max. Discharge Pressure: Up to 23 PSI.
• Discharge Lift: 15 ft.
• Suction Lift: 9 ft.
• Operating Temperature: 23° F to 104° F (-5° C to 40° C).
• Mounting Type: Cage Kit.
• Inlet: 3/4 in. Hose Barb.
• Outlet: 3/4 in. Hose Barb.
• Dispensing Hose: 20 ft. x 3/4 in.
• Pump Housing Material: Reinforced Nylon
• Nozzle Type: 3/4 in. NPT, Automatic Shut-Off, DEF.
• Wetted Materials: Nylon | TPU | EPDM Stainless Steel.
• Included: 115-Volt DEF Transfer Pump, DEF flow meter, Stainless steel IBC cage mounting bracket, Stainless steel automatic nozzle, Inlet hose, Dispensing hose, Stainless steel nozzle hose barb swivel, Hose barb inlet and outlet fittings, Hose clamps, Owner's manual
• Fluid Compatibility: DEF (Diesel Fluid Fluid)
• Warranty: 2 year pump and meter

Downloads

Specification Sheet (PDF Download)

Installation Instructions (PDF Download)

Product Manual (PDF Download)
