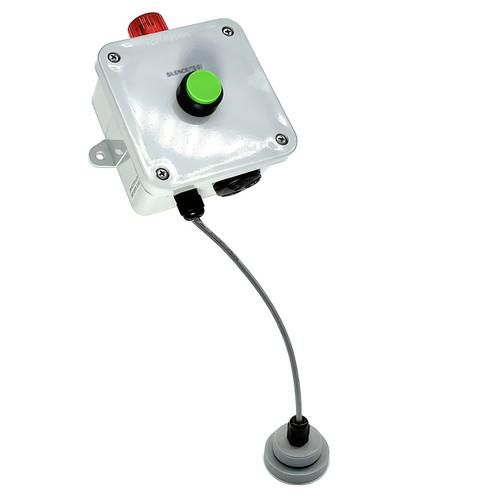

Gizmo Engineering AB-2-LK Alarm Box with Leak Sensor - 120VAC

Gizmo Engineering's 120V AC Alarm Box with Buzzer, Flashing LED & Leak Sensor (AB-2-LK) is a high-tech alarm with a loud buzzer, flashing LED lights and top-of-the-line leak sensor. The buzzer cannot be ignored, as it blares through the industrial sound around you. When the alarm box senses close contact, there is a slight delay then the buzzer sounds and lights flash. This isusually powered by a 120V AC power line. Shop the JME site for the best selection of Gizmo alarm boxes today.

Features

• The flashing beacon LED light is visible in daylight.
• Built for rugged, rough, wet and outdoor environments.
• The loud warbling tone cuts through the loudest of industrial noises.
• Each box alarm is waterproof.
• Has a snooze alarm, which repeats every 30 minutes.
• Applications: Secondary containment tanks, sump pumps, spill containment pans under chemical process equipment, lak monitoring below storage tanks and totes.
• It is compact, so it is able to fit into small spaces.
• Has a 120V AC relay output.

Specifications

• Weight: 2.1 lbs.
• Dimensions: 5 in. x 5 in. x 2 in.
• Shipping Dimensions: 8 in. x 8 in. x 8 in.
• Operating Temperature: -76°F to 140°F
• Enclosure Material: PVC
• Enclosure Screw Material: 316 Stainless Steel
• Enclosure Seal Material: PVC Elastomer
• Beacon Lens: Lexan
• Cord Grip Material: Nylon
• Buzzer Diaphragm: 316 Stainless Steel
• Power Cord: 3C/14, SJOOW jacket
• Communications Cable Material: 8C/24, Shielded, PVC Jacket
• Communications Cable Size: 0.032 in.
• Buzzer Volume: 103 dB @ 2 ft.
• Ingress Protection: IP65
• Current Consumption During Alarm: 30mA
• Passive Current Consumption: 5mA
• Maximum Relay Current Load: 15A @ 120V AC
