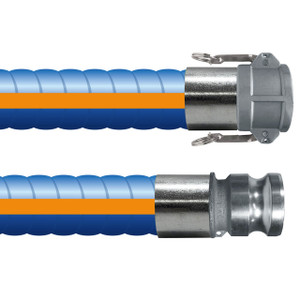

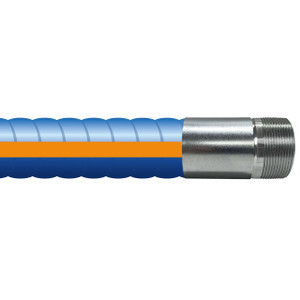

Gates 1 in. Chem Master Xtreme FEP 200SD Chemical Transfer Hose

The Chem Master™ XTreme™ FEP 200SD hose is designed for demanding industrial applications requiring high chemical resistance and durability. Constructed with a fluoroethylenepropylene (FEP) tube, this hose excels at handling a wide range of chemicals, including basic building blocks used in various industries. Its EPDM cover provides excellent abrasion resistance and flexibility, while the multi-ply synthetic textile reinforcement and dual wire helix ensure superior strength and suction capability.

With a continuous operating temperature range of -40°F to +300°F (-40°C to +149°C) and a working pressure of 200 psi, this hose is built to withstand harsh conditions. It meets FDA requirements and can be easily cleaned with standard methods. The Chem Master™ XTreme™ FEP 200SD hose offers peace of mind knowing it's backed by Gates Gatron™ for flex fatigue safety at the coupling.

Features

• Extreme Chemical Resistance: Built with FEP tubing, this hose withstands the toughest chemicals you throw at it.
• Superior Temperature Range: Operate reliably in temperatures from -40°F to +300°F.
• Built for Durability: Multi-ply reinforcement and a dual wire helix ensure lasting performance even under pressure.
• Easy Cleaning: Designed for easy cleaning with standard CIP methods, keeping your system running smoothly.

Specifications

• Part Number: 46980012
• Product Name: Chem Master™ XTreme™ FEP 200SD
• UPC: 072053651355
• Vacuum (In. Hg): 30
• Continuous Operating Temperature Range: -40°F to +300°F (-40°C to +149°C)
• Minimum Bend Radius (in.): 5 (127 mm)
• Hose Inside Diameter (in.): .1 (25.4 mm)
• Hose Outside Diameter (in.): 1.56 (39.6 mm)
• Inside Diameter (in.): 1 (25.4 mm)
• Temperature Range: -40°F to +300°F (-40°C to +149°C)
• Working Pressure (psi): 200
• Length (m): 30.5
• Outside Diameter (in.): 1.56 (39.6 mm)
• Color: Blue
• Cover: EPDM - Type P, Corrugated
• Reinforcement: Multi-ply, synthetic textile, dual wire helix
• Tube: Fluoroethylenepropylene (FEP) - Type T, High chemical resistance
• Construction: Design Factor: 4:1
• Standards: Meets FDA requirements
• Application: Tank truck, barge, ship, or storage tank transfer of a variety of chemical products.
• Coupling Recommendation: 71 Permanent Swaged or Crimped. 73 Permanent Swaged or Crimped.
• Weight (lbs.): 0.63
