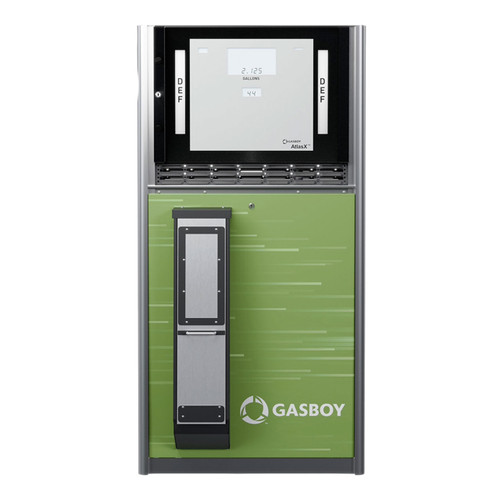

Gasboy AtlasX 8862GX DEF Dispenser, Single Side Load For Warm Weather - 15 GPM

Description

Introducing AtlasX 8800G Retail series. Leveraging the strength of our legacy Atlas and Encore brands, AtlasX pumps and dispensers offer centralized, optimized, and efficient commercial refueling.

The AtlasX retail electronic series is built with anodized aluminum panels that enable greater durability without welding points. The AtlasX retail electronic dispenser incorporates enhanced security features and real-time monitoring and reporting capabilities.

The Gasboy electronic dispenser is equipped with advanced electronic metering technology, ensuring accurate and precise fuel measurements.

Features

• Best-in-class engineering: Krohne Magmeter delivers industry leading accuracy and comes equipped on both AtlasX DEF dispenser models
• Modern Design: Cold weather models are versatile and incorporate an improved heat-insulated cabinet with internal hose reel to protect from freezing and crystallization.
• Future-Proof: Modern Encore Electronics platform provides the foundation for future applications (remote diagnostics, remote software updates, secure payments etc.)
• 1 Year Warranty: Commercial and Retail Pumps and Dispensers are warranted against defects in material and workmanship for 12 months from date of installation or 24 months from date of original invoice, whichever occurs first

Specifications

• Brand: Gasboy
• Part Number: 8862GX-ZWW
• Type: Electric Dispenser
• Flow Rate: 15 GPM
• Working Pressure: 30 PSI
• Max Working Pressure: 50 PSI
• Unit of Measure: Gallons/Liters selectable
• Filters: Strainer
• Number of Hoses : 1
• Piping: 3/4 in. Internal fuel piping
• Discharge: 1 in. BSPP
• Nozzle Positions: Side load
• Inlet: 1 in. BSPP
• Heater: No Heater
• Housing: G30 galvanized steel 13GA
• Panels/Sheathing: Lockable removeable-precoated aluminum 2mm thick
• Junction Box: Field wiring junction box
• Computer/Register: Electronic register (volume only display)
• Meter: Krohne Magmeter Mass Flow Meter with electronic calibration
• Solenoid Valve: 3/4 in. 2-stage valve for Preset Operation (PP)
• Connectivity: 2 Wire Communication Protocol
• Environment: Warm Weather
• Temp Range : Electronics: 15°F (-9.4° C) to 131°F (55° C)
• Solenod valve: 2-stage valve for preset operations (PP)
• Approvals: UL and cUL Listed W&M, NCWM, Measurement Canada (MC)
• HP: 1
• Voltage: 115/230 VAC
• Electrical Rating - Control Valves: 0.2A@120 VAC; 0.1A@ 240 VAC
• Electrical Rating - Electric Reset Motors: 2.2 A@ 120 VAC; 1.1A@ 240 VAC
• Electrical Rating - Lights : 1.0A@ 120 VAC 50/60 Hz;0.5A@ 240 VAC 50/60 Hz
• Electrical Rating - Pump Motor: 10 A@ 115 VAC 60 Hz;5.3 A@ 230 VAC 50 Hz
• Electrical Rating - DEF Heater: 8.5A@ 120 VAC
• Calibration: Electronic
• Pump models: GPU + gear pump
• Electronic display: LCD 6-digit money and volume, 4-digit PPU
• Power fail backup: Display retained 15 minutes
• Warranty: 12 Months - Parts and Labor
