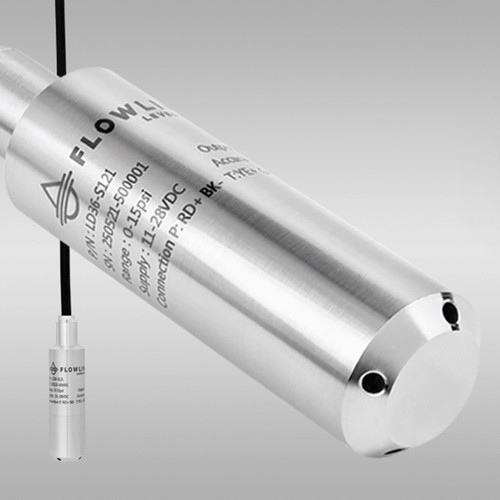

Flowline LD36-S121 DeltaSpan LD36 Submersible Pressure Level Transmitter, 34 ft. Range

Description

The LD36 dual purpose submersible level and temperature pressure transmitter provides continuous liquid level measurement up to 34.65’ (10.5m) of water column and temperature measurement from -40º to 257º F. (-40º to 125º C.) with a dual 4-20 mA signal output. For convenient installation with junction box termination, package your sensor with the pressure sensor mounting kit. Each kit includes a junction box with terminal strip, mounting plug and liquid tight cable connector. The LD36 level sensor is well suited for clean liquids compatible with 316 SS and polyurethane such as well water and diluted chemicals.

Features

• Level and temperature measurement in one sensor
• Rugged sensor designed for complete submergibility
• 316 stainless steel sensor body with polyurethane cable
• Maintenance-free vent tube with filter ensures accuracy
• Mounting kit for easy tank install and conduit termination
• Integral surge protection for lightning strikes or power surges
• Automatic temperature compensation for reliable measurement

Specifications

• Range: 0 to 15 psi (1 bar) or 0 to 34.65 ft. (0 to 10.6m) wc
• Temp. scale: F: -40° to 257°; C: -40° to 125°
• Accuracy: ± 0.25% of full scale
• Configuration: None, fixed span
• Supply voltage: 11 to 28 VDC
• Loop resistance: 900 Ohms max @ 30 VDC
• Signal output: Dual two-wire, 4-20 mA
• Process temp.: F: 14° to 176°; C: -10° to 80°
• Temp. comp.: Automatic
• Burst pressure: 2 x full scale
• Response time: Pressure: 50ms; Temperature: 3 minutes
• Sensor material: 316 stainless steel, PVC
• Enclosure rating: NEMA 6P (IP68)
• Cable type: 4-conductor, shielded with filtered vent tube
• Cable material: PUR (polyurethane)
• Cable length: 60 ft. (18.3m)
• Classification: General purpose
• Compliance: CE, RoHS
