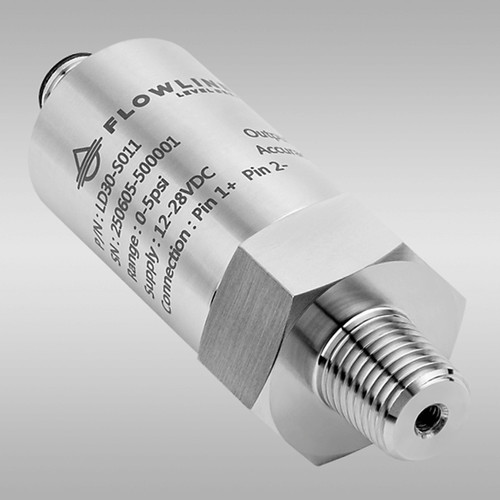

Flowline LD30-S001 DeltaSpan LD30 Submersible Pressure Level Transmitter, 11 ft. Range

Description

The LD30 general purpose external mount pressure level transmitter provides continuous liquid level measurement up to 34.65’ (10.5m) of water column with a 4-20 mA signal output. Offered in two level measurement ranges and termination types, select the -S_01 model for cable termination or the -S_11 model for M12 connector termination. The LD30 pressure level sensor is well suited for clean liquids compatible with 316 SS such as process water and diluted chemicals.

Features

• Rugged 316 SS transducer body and threaded fitting mount
• Offered in cable or connector termination for flexible installation
• Integral surge protection for lightning strikes or power surges
• Automatic temperature compensation for reliable measurement

Specifications

• Range: -S0_1: 0 to 5 psi (0.34 bar) or 0 to 11.55 ft. (0 to 3.5m) wc; -S2_1: 0 to 15 psi (1 bar) or 0 to 34.65 ft. (0 to 10.6m) wc
• Accuracy: ± 0.25% of full scale
• Configuration: None, fixed span
• Supply voltage: 11-28 VDC
• Loop resistance: 900 Ohms max @ 30 VDC
• Signal output: 4-20 mA, two-wire
• Process temp.: F: 14° to 176°; C: -10° to 80°
• Temp. comp.: Automatic
• Burst pressure: 2 x full scale
• Response time: 50ms
• Process mount: 1/4 in. NPT
• Sensor material: 316 stainless steel
• Enclosure rating: NEMA 4X (IP65)
• Termination: -S_01: Cable; -S_11: M12 connector (male)
• Cable type: -S_01: 2-conductor, shielded
• Cable material: -S_01: PUR (polyurethane)
• Cable length: -S_01: 9 ft. (2.7m)
• Classification: General purpose
• Compliance: CE, RoHS
