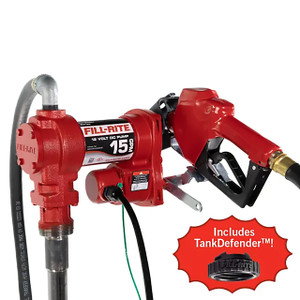

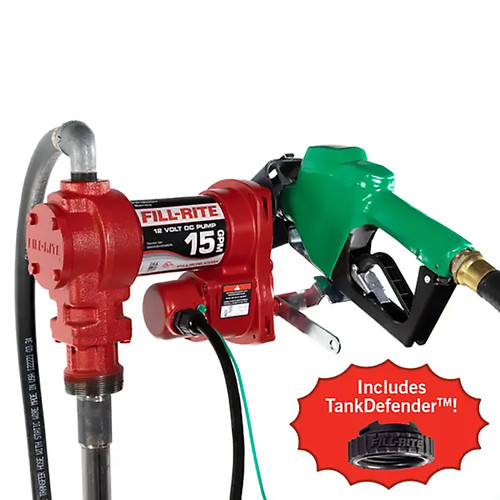

Fill-Rite FR1210HA1TKD Fuel Transfer Pump w/ Nozzle, Tank Defender - 15 GPM

Description

Fill-Rite's 1200 Series of heavy-duty fuel transfer pumps feature simple installation with a rotatable junction box and are built to last with cast-iron construction.

The FR1210HA1TKD model is a 12V DC, 15 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a TankDefender, hose, nozzle, suction pipe, and installation components.

You work through all kinds of conditions, so why shouldn’t your fuel transfer pump? Fill-Rite Company has set the standard for reliable fuel transfer pumps, meters, and accessories. Our customers recognize Fill-Rite for its durability and years of elite performance in the field. Proudly made in the USA with global materials, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications. Fill-Rite is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fuel transfer equipment. Not for use with aviation fuel.

Features

• Cast-Iron Construction – heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
• Reliable Performance – Fill-Rite’s trusted rotary vane pump technology delivers 15 gallons per minute, perfect for filling equipment with fuel tanks from 15-60 gallons
• Mobile Tanks – powered by a 12V motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to 12 volt batteries and installing onto transfer tanks in truck beds
• Fluid Compatibility – designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits
• Easy Installation – adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces
• Long Life – thermally-protected motor prevents overheating, ensuring your pump performs for years worry free
• Equipment Safeguard – built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment
• Reliable On-Off Switch – on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use

Specifications

• Max Flowrate: 15 GPM / 57 LPM
• Power Type: 12V DC
• Compatible Fluids: Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits
• Inlet Size / Connection / Thread: 1.0 in. / Female / NPT
• Outlet Size / Connection / Thread: 0.75 in. / Female / NPT
• Mounting Size / Thread / Type: 2 in. / NPT / Bung Mount
• Duty Cycle (min): 30 min on / 30 min off
• Power Source: Electrical
• Motor Power (HP): 0.25
• Max Current (A): 20 A
• Thermal Protection Switch: Yes
• Self Priming: Yes
• Suction Lift (ft.): 8 ft.
• Discharge Head (ft): 37 ft.
• Strainer Mesh Size (Micron): 20x20
• Max Operating Pressure (PSI): 16
• Viscosity Range (cSt): 1 to 4

Included Accessories

• Additional Accessories: TankDefender, Nozzle Boot, PTFE Tape Roll, 3/4 in. NPT Street Elbow, Ground Wire, Cable Gland, (2) Wire Nuts, Locking Nut, Fastener
• Cable Length (ft): 18 ft.
• Cable Gauge (GA): 12
• Cable Connection: Bare Leads
• Suction Pipe: 20 in. – 34 1/2 in. Steel Telescoping Suction Pipe
• Discharge Hose: 3/4 in. X 12 ft. Hose with Static Ground Wire
• Nozzle: 3/4 in. Automatic Diesel Nozzle
