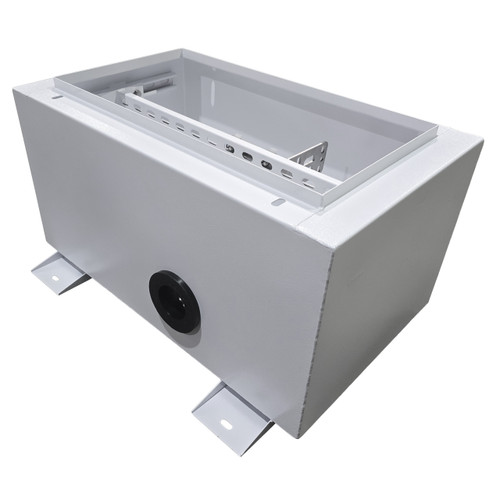

Fairfield Industries DPC-1/2 Single Product Carbon Steel Dispenser Platform, Adjustable Stabilizer Bar, Shear Valve Bracket, 2 in. Flexible Entry Boot

Description

Fairfield Industries Dispenser Platforms (DP) are utilized for the mounting and plumbing of fuel dispensers tied to above ground storage tanks. The stainless steel containment platform is pad mountable and houses contractor furnished shear valves or pressure regulating valves common to dispenser installations. Any leakage from dispenser or double wall piping is contained inside the containment area. Units are available for single product applications with flexible entry boots of 1 1/2 in. or 2 in. penetrations. Constructed from powder coated carbon steel. Includes adjustable stabilizer bar, shear valve bracket.

Specifications

• Size: Single 25 in. W X 21 1/4 in. D X 17 1/4 in. H
• Heavy Gauge Stainless Steel Maintenance-Free Containment Platform
• Adjustable Stabilizer Bar with Blot-On Shear Valve Bracket
• (4) Anchor Feet with Bolt Holes
• 2 in. Flexible Product Penetration Boots Factory Installed
• Good for Suction or Pressurized Piping Systems
• Various Dispenser Foot Prints Available w/ Dispenser Anchor Points

Downloads

Specification Sheet (PDF Download)
