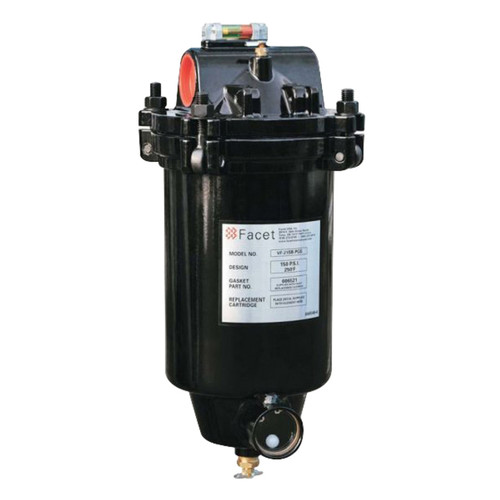

Facet VF-22SB Series Housing w/ Direct Reading Differential Pressure Gauge

The Facet VF-21SB & VF-22SB are versatile, compact, economical, light weight housings for superior in-line filtration protection. These housings utilize the same elements as previous Series 21 & 22 housings, but offer the benefit of a quick open swing bolt type close along with a new optional mounting bracket for installation.

Depending on the type of cartridge selected, the housing may be used as a filter, absorptive filter, filter separator or air/gas entrainment separator to remove solids, water, mist or hydrocarbon carryover.

Note: Full flow monitors are not for use in fuel containing anti-icing additive (FSII, PRIST, DI-EGME). This includes pre-mixed and military fuels containing this additive.

Features

• Carbon steel body
• Aluminum head
• Epoxy coated internally and externally
• Swing bolt quick open closure
• Nitrile rubber o-ring closure gasket
• Vent and drain connections w/ brass petcocks provided

Specifications

• Design pressure: 150 psi (10.5 kg/cm2)
• Gasket: Nitrile rubber
• Inlet & Outlet connections: 1 1/2 in. NPT

Applications

• Jet Fuel
• Avgas
• Gasoline
• Diesel
• Bio-Diesel
• Lube Oil
• Insulating Oil
• Hydraulic Oil
• Transformer Oil
• Solvents
• Compressed Air
• LNG
