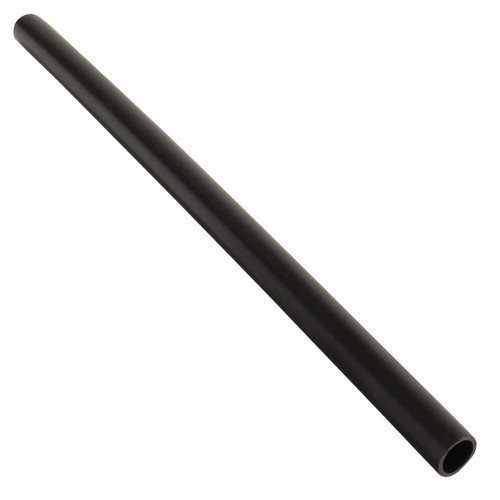

Excelon LLDPE 1/2 in. LLDP Tubing, Black - 100 ft., 5/8 in. OD

Description

Excelon LLDPE 1/2 in. LLDP Tubing, Black - 100 ft., 5/8 in. OD

Excelon® LLDPE conforms to all applicable regulations of the FDA for use of articles intended for contact with food and is made from 100% virgin-grade raw materials. It is noncontaminating in odor or taste.

Providing flexibility and durability required to transport air, water, and chemicals, LLDPE provides an economical solution in most industrial applications. LLDPE prevents problems in transfer lines by resisting cracks and tears at metal, plastic, compression and barbed fittings. It is chemically inert, forming a strong barrier to gases, vapors, and moisture.

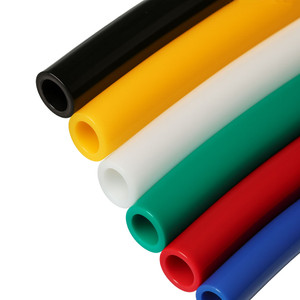

Thermoplastic Processes stocks a variety of sizes in natural, yellow, blue, red, green, gray, orange, white, and black. Our opaque black PE tubing is UV Resistant, making it the preferred choice in outdoor applications. In addition to the sizes we stock, Thermoplastic Processes can custom run any size from .04 OD – 2 OD. Metric sizes, custom lengths, and lay lines are available upon request.

Features

• Made from non-toxic ingredients conforming to FDA standards
• Superior crack resistance
• Higher working pressure than conventional LDPE
• Temperature range: -42°F to 140°F (-45°C to 60°C)
• Flexible, lightweight, and durable
• Odorless and tasteless
• Good dielectric properties
• Better resistance to stress cracking than low-density polyethylene

Specifications

• Brand: Excelon
• Series: LLDPE
• Part Number: UP-106-BK-100 4/CTN
• Length: 100 ft.
• I.D.: 1/2 in.
• O.D.: 5/8 in.
• Wall Thickness: 0.062 in.
• Color: Black
• Material: Linear Low-Density Polyethylene
• ID/OD Tolerance: +/-.015 in.
• LG Tolerance: +1 ft.-0
• Temp Range: -42°F to 140°F (-45°C to 60°C)
• Hardness, Shore A: 51
• Tensile Strength: 2170 PSI
• Elongation at Break: 7
• Brittle Temperature: -42°F
• Vicat Softening Point: 190°F
• Maximum Temperature: 140°F
• Certifications / Approvals: REACH, RoHS, FDA, NSF 51, NSF 61

Downloads

Specification Sheet (PDF Download)
