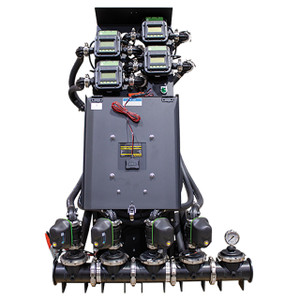

Dura Products 3 in. FastBatch™ Direct Injection System, (4) 12V Pumps, EPDM Seals

Dura Products FastBatch™ DI DPAB-DI3E-12 2 in. 12V 4 Pumps Plumbed Direct Injection System w/EPDM Seals

The FastBatch™ Direct Injection System revolutionizes sprayer loading by directly injecting herbicides into the carrier flow while filling. The FastBatch™DI maximizes the efficiency of your existing equipment, providing an excellent return on investment, often in less than nine spraying days. The system is designed with simultaneous direct injection to maximize productivity, streamline workflow and keep worker and crops safe. This advanced chemical handling system reduces sprayer load times by up to 80%, making it the most cost-effective automated filling system on the market. It recirculates chemicals for maximum performance and operates as a closed fill system, reducing operator exposure to chemicals.

Notes: For 110V installation and operation, Dura Products recommends the NOCO® GenPro 10X1 charger to connect to the 12V battery system.

• Ships fully assembled on a pallet
• Always turn pump off and disconnect system from power when not in use
• Never leave unattended while in use
• Make sure to close manual valves at the bottom of the system when not in use

Features

• Easy to Fill: Filing your sprayer is faster and easier
• Fast and Efficient: Reduces sprayer load time by up to 80%, increasing productivity
• Operator Safety: Reduces operator error and exposure to chemicals with a closed fill system
• Maximized Performance: Provides recirculation to ensure optimal chemical performance
• Accurate and Repeatable: Dispenses consistent batches with precise accuracy
• Solar Panel: Integrated into the DI System framework
• Upgrades: Has a protective meter lid with solar panel, housing enclosure upgraded and includes a built-in shelf under meters
• Dry Disconnects: For calibrating chemicals
• Electric Valves: For easier use and automation
• Warranty and Maintenance: Includes a 2-year warranty and maintenance program

Specifications

• Model: DPAB-DI3E-12
• Size: 3 in.
• Voltage: 12V DC
• Seal Material: EPDN
• Max Pressure: 150 PSI
• Flow Rate: 18 GPM/ 68 LPM
• Pumps: (4) High-Flow Dura-Pumps
• Operating Temperature: 32°F to 158°F
• Storage Temperature: -40°C to 185°C
• Connections: M100-M220-M300 Flanges
• Wiring: On/Off, 3 wire
• Connector: 4 Pin Deutsch
• EV Open/Closed Indicator: Yes
• Calibration: Dry Poppets
• Overall Dimensions: 38 in. L x 35 in. W x 53 in. H
• Other Dimensions 40 in. H (to top of frame), 18 1/2 in. D top, 27 in. W at the bottom & 7 in. battery plate off back on bottom of frame
• Warranty: 2 Year Warranty & Maintenance program

Includes

• (4) High-Flow Dura-Pumps™
• (4) Plumbing Kits
• (1) Gauge Kit
• (4) Dura Auto-Batch™ Meters
• (4) Dura Electric Valves
• (1) DI Metal Frame, all hose clamps, elbows and nipples
