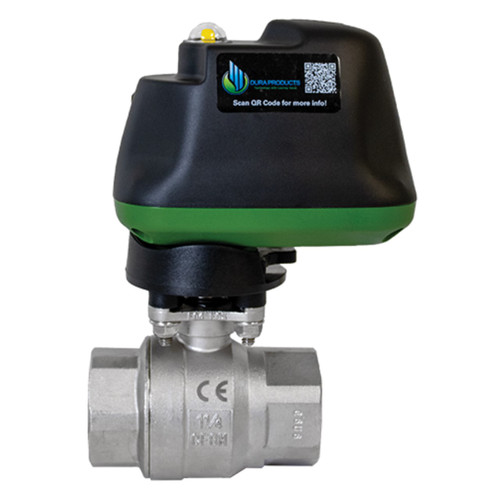

Dura DPEV-125SS 1 1/4 in. Electric Actuated Stainless Steel Ball Valve, 12V DC On/Off

Dura DPEV-125SS 1 1/4 in. Electric Actuated Stainless Steel Ball Valve, 12V DC On/Off Description

Dura's 1 1/4 in. Electric Actuated Stainless Steel Ball Valve is a reliable option for your fluid control needs. This ball valve is designed for fluid control applications for agricultural, industrial and OEM fluid-handling systems. These applications require automation, repeatability and safety.

The Dura Product's electric ball valves are well-trusted in industrial process control, chemical transfer, batching system, direct injection, sprayer and nurse trailer situations. Dura engineers their ball valves with corrosion-resistant stainless steel and a high-performing electric actuator, delivering quick response, long-lasting service life and consistent output throughout operation. Shop the JME site for the best selection of Dura ball valves today.

Features

• The multi-position adapter on actuator allows for different valve configurations.
• Is compact in size for unparalleled efficiency.
• The actuator housing is waterproof.
• Has a fast open/close response with consistent actuation.
• Provides an unrestricted flow, reduces pressure drop and compatibility with high-volume transfer systems.
• The construction of the ball valve is built of a corrosion-resistant stainless steel material.
• Actuator housings are weather-resistant and built for outdoor, harsh operations.
• Each ball valve is energy efficient and has a low power consumption rating.
• Design is OEM ready.

Specifications

• Weight: 10 lbs.
• Size: 1 1/4 in.
• Connection Type: Female NPT
• Voltage 12 Volt DC
• On/Off Response Time: 0.8 Seconds
• Open/Closed Indicator: Yes
• Wiring: On/Off 3 Wire
• Connector: DT 4 Pin w/ loose wire pigtail
• Maximum Pressure: 600 PSI
• Storage Temperature Range: -32°F to 158°F
• Actuator Material: Nylon, Polycarbonate, FKM, Silicone
• Valve Material: CF8M SS Body, 316 SS Ball and Stem, PTFE seats and body seal, FKM and PTFE stem seals
• Dimensions: 5.24 in. x 3.19 in. x 8.6 in.

Applications

• Chemical Transfer Systems
• Direct Injection and Batching Systems
• Fertilizer Applications
• DEF Handling
• Agricultural Sprayers
• Nursery Trailers
• Industrial Fluid Automation
• OEM Equipment Integration

Downloads

Specifications Sheet (PDF Download)
