Duct Inc. 110 LaserLock Duct Pipe

Description

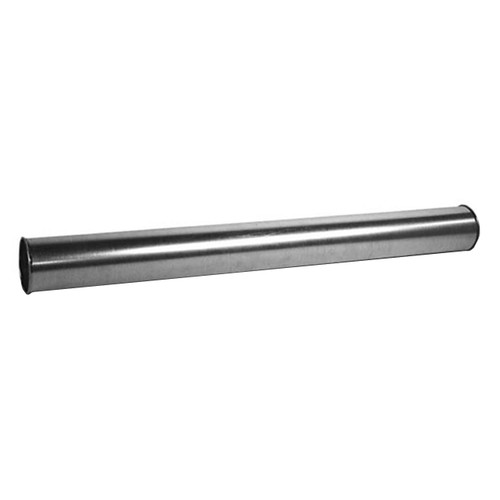

Style 110 Pipe is constructed from galvanized steel with a welded longitudinal seam. Pipe is approximately 5' in length with rolled ends for an easy clamp together installation.

One clamp per pipe and fitting is recommended. Other sizes and accessories available call a JME Sales Specialist at 800-333-3331 for a quote. If there is drawing of layout, please share with JME to forward to the vendor for a system quotation.

Duct Incorporated manufactures LaserLock modular clamp-together ducting supplies for pollution control, dust collection, oil mists, fume extraction, paper trim, plastics, food dusts & powder bulk solids material conveyance. Fully welded with rolled edges & clamp-together design has no rivets or screws & can be reconfigured to a dusting solution ideal for new or existing systems & available in stainless or galvanized steel.

Specifications

• Style: 110
• Length: 5 ft.
• Material: Galvanized
• Material Thickness 3 in. Diameter: 12 Gauge
• Material Thickness All Other Sizes: 20 Gauge
• Maximum Temperature Rating: 390°
• Maximum Pressure Rating: 80" WG +/-
• Connection Type: Clamp
