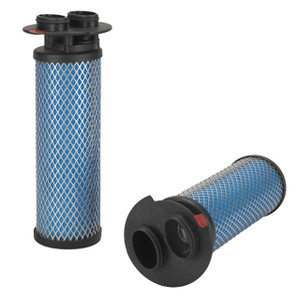

Donaldson V 1C486083 Coalescing Filter Element, 1100 gmh, 5 Micron

Donaldson's DF filter-specific V Series filter elements are designed for compressed air and gas applications specifically in the industrial industry. The flow-optimized design of the V series filter elements allow for minimized differential pressure and a high seperation efficiency at all times. Each Donaldson V Series filter element contains a three-dimensional micro fiber fleece made of polyester, which keeps your air filters dry. Come to the JME site for the best selection of V Series compressed air filter elements.

Features

• Used for DF Series compressed air housings by Donaldson.
• The innovative filtration technology of the V series fitler elements include wrapped depth filter mediums with a high dirt-holding capacity, allowing for high retention rates with low differential pressure ensured.
• You have the ability to change the position of the coding clips in each filter bowl for the best coalescence filter or particle filter usage.
• The flow-optimized design allows for minimal pressure loss for economic purification of the compressed air in the filter, saving time and energy costs.
• Applications: central compressed air processing, downstream applications, automotive industry & absorption dryers/activated carbon absorbers

Specifications

• Connection Type: DF Connection
• Diameter: 18.35 in.
• Efficiency: 5 micron
• Element O-Ring Material: FKM
• End Cap Material: Fiberglass Reinforced Polymer
• Product Length: 5.16 in.
• Maximum Operating Temperature: 149°F
• Media Type: Polyester
• Inner Core Material: 1.4301 / 304 Stainless Steel
• Outer Core Material: 1.4301 / 304 Stainless Steel
• Shipping Dimensions: 18.90 in. x 5.51 in. x 5.51 in.
• Shipping Weight: 1.85 lbs.
