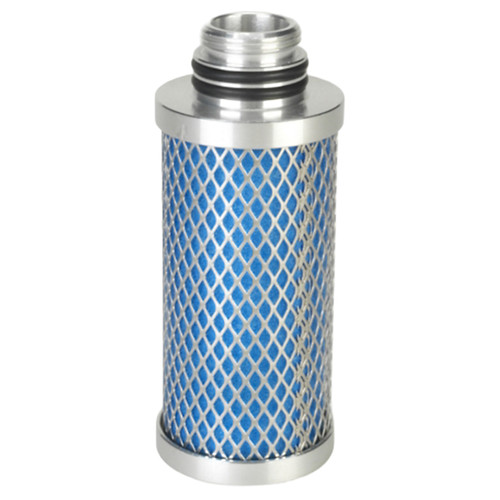

Donaldson CF 1C121040 Filter Element, 05/25, 3 Micron

The best-in-industry CF Series coarse filter elements, built for the DF series filters by Donaldson, have a three-dimensional microfiber fleece made of polyester, which works as an oleophobic and hydrophobic material. With 100% particle efficiency with 3 micron power, these filter elements utilize a few filtration mechanisms such as direct impact, diffusion and sieve effect to retain liquid aerosols and solid particles. The CF Series filter elements from Donaldson are compatible with the AG, SG & HD filter housings. Shop the JME site for the best selection of CF coarse filter elements by Donaldson.

Features

• The innovative filtration technology of the CF coarse filters are wrapped depth, which allows for medium to high dirt-holding capacity when low differential pressure is used.
• The CF filters save you money by allowing for minimal pressure loss during the compressed air purification process through their flow-optimized design.
• Coalescence / particle filter for the retention of oil and water aerosols as well as particles from compressed air or gases in industrial applications.
• Performance data according to ISO 12500; reliable achievement of compressed air quality according to ISO 8573-1

Specifications

• Shipping Dimensions: 6.30 in. x 2.76 in. x 2.76 in.
• Shipping Weight: 0.45 lbs.
• Filter Material: Microfiber polyester fleece
• Inner and Outer Support Liner: Stainless Steel 1.4301 / 304
• End Cap Material: Aluminum
• O-Ring Material: NBR
• Efficiency: 3 micron

Downloads

Product Literature (PDF Download)

Specification Sheet (PDF Download)
