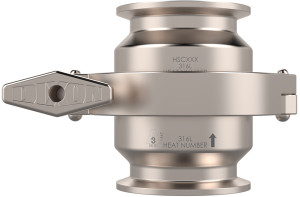

Dixon Sanitary EHSC Series Eccentric Spring Check Valve w/ Weld Connection & EPDM Seal

SKU:
Please choose an option below
Manufacturer:
Dixon
Material:
Stainless Steel
Seal-Material:
EPDM
Weight:
1.15 LBS
$202.99 - $615.84
WARNING: This product may contain a chemical known to the State of California to cause cancer & reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Adding to cart… The item has been added

Spring check valves are designed to prevent reverse flow. The eccentric design makes them ideal for horizontal applications.

Features

  • Machined from solid bar
  • Standard O-ring and gasket seal design
  • Can be serviced in field (no special tools required)
  • Sanitary polish 32 Ra finish
  • Weld end connections

Specifications

  • Sizes 1/2 - 4 in.
  • Seal-Material: EPDM
  • Material: 316L Stainless Steel
  • Max Operating Pressure: 145 PSI
  • Temperature Range: 15°F to 200°F (-9.4°C to 93°C)

Cracking Pressure

Size
  Cracking Pressure
1/2 in.
10.0 PSI
3/4 in.
4.0 PSI
1 in.
2.5 PSI
1 1/2 in.
1.0 PSI
2 in.
1.5 PSI
  2 1/2 in.
0.8 PSI
3 in.
0.5 PSI
4 in.
0.4 PSI
