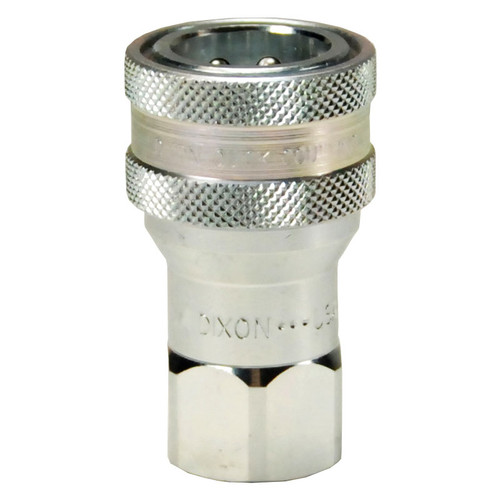

Dixon Agricultural Series FTP Couplers, constructed from steel, are used on construction equipment, farm implements, and most other mobile equipment.
Compatible With:
- Pioneer Agricultural Interchange
- Parker/Pioneer 4000 Series
- Safeway S20
Features
- Ball style shut-off valves in both the coupler and the plug
- Dixon Agricultural Quick Connect fittings feature ball style shut off valves in both the coupler and the plug
- Interchangeable with Pioneer 4000 series, Safeway agricultural series and ISO5675
- Body sizes 1/4 in, 3/8 in, and 1 in have a poppet valve with soft seat design
Specifications
- Temperature Range: -40°F to +250°F (-40°C to +121°C)
- Max Operating Pressure: 4000 PSI (275 BAR)
- Burst pressure: 21000 PSI (1500 BAR)
- The International Standard Organization (ISO) has adopted specifications regarding dimensions and interchangeability
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
- Steel componentry is plated using ROHS Compliant Trivalent Chrome
- Steel coupler sleeves are hardened to resist deformation and maximize service life
- Nitrile (Nitrile Rubber) seals are standard
- Couplers have a PTFE Anti-Extrusion ring
- Poppet valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection
- Ball valve and poppet valve options available
