Dixon 2870407C 1/4 in. Push On Hose ID x 7/16-20 UNF Brass Hose Fitting

Dixon 2870407C 1/4 in. Push On Hose ID x 7/16-20 UNF Brass Hose Fitting

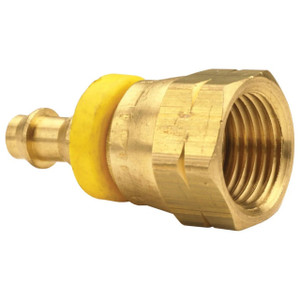

The Dixon 2870407C Brass Hose Fitting is engineered for secure and efficient fluid connections in industrial and hydraulic systems. Designed with a 1/4-inch push-on hose barb and a 7/16-20 UNF female swivel thread, this fitting features a dual angle seat compatible with both 45° SAE and 37° JIC connections. Its push-on design eliminates the need for clamps or ferrules, streamlining installation while maintaining a strong, leak-resistant seal. Constructed from durable brass and equipped with a yellow plastic cap for added grip and visibility, this fitting supports pressures up to 350 PSI and operates in temperatures ranging from -40°F to 150°F. Ideal for use with Lok-On hoses, it ensures reliable performance in demanding environments.

Features

• Dual Angle Seat Compatibility: Supports both 45° SAE and 37° JIC swivel connections for versatile application.
• Push-On Hose Barb Design: Enables quick, tool-free installation without clamps or ferrules.
• High-Strength Brass Construction: Provides corrosion resistance and long-lasting durability.
• Wide Operating Range: Handles temperatures from -40°F to 150°F and pressures up to 350 PSI.
• Yellow Plastic Cap: Enhances grip and ensures proper hose insertion depth.

Specifications

• Barb Length: 0.77 in.
• Component Material: Yellow Plastic Cap
• Female Thread: UNF
• Female Thread Size: 7/16 in. -20
• Hex: 9/16 in.
• Hose ID: 1/4 in.
• Length: 1.47 in.
• Material: Brass
• Number of Barbs: 2
• Pressure Rating: 350 PSI
• Size: 1/4 in. Push On Hose ID x 7/16-20 UNF
• Temperature Range: -40°F to 150°F (-40°C to 65.6°C)
• Tube OD: 1/4 in.
