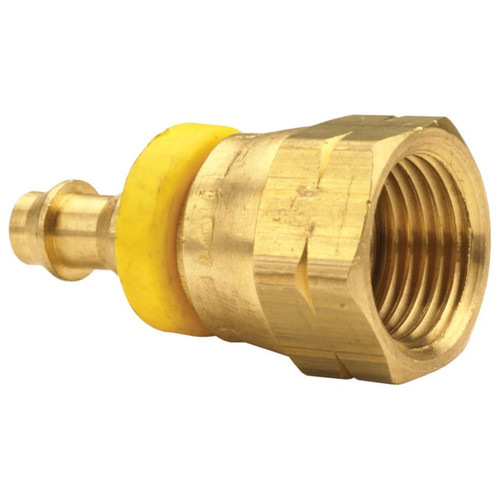

Dixon 2840610C 3/8 in. Push-On Hose ID x Female 5/8 in. -18 UNF Hose Fitting

Dixon 2840610C 3/8 in. Push-On Hose ID x Female 5/8 in. -18 UNF Hose Fitting

The Dixon 2840610C Brass Hose Fitting is a high-performance connector designed for secure and efficient fluid transfer in industrial and hydraulic systems. Featuring a 3/8-inch push-on hose barb and a 5/8"-18 UNF female swivel thread, this fitting includes a 45° SAE seat and a notched nut for easy SAE identification. Its push-on design eliminates the need for hose clamps or ferrules, streamlining installation while maintaining a strong, leak-resistant seal. Constructed from corrosion-resistant brass and equipped with a yellow plastic cap for proper hose alignment, this fitting supports pressures up to 350 PSI and operates within a temperature range of -40°F to 150°F. Designed for use with Lok-On hoses, it ensures reliable performance in demanding environments.

Features

• 45° SAE Swivel Connection: Provides a secure and versatile fit for hydraulic and pneumatic systems.
• Push-On Hose Barb Design: Enables fast, clamp-free installation with strong hose retention.
• Brass Construction: Corrosion-resistant material ensures long-lasting durability.
• Notched Nut for SAE Identification: Simplifies identification and installation in complex systems.
• High Pressure and Temperature Range: Rated for 350 PSI and operates from -40°F to 150°F for broad application use.

Specifications

• Barb Length: 0.92 in.
• Component Material: Yellow Plastic Cap
• Female Thread: UNF
• Female Thread Size: 5/8 in. -18
• Hex: 3/4 in.
• Hose ID: 3/8 in.
• Length: 1.75 in.
• Material: Brass
• Number of Barbs: 2
• Pressure Rating: 350 PSI
• Size: 3/8 in. Push-On Hose ID x Female 5/8 in. -18 UNF
• Temperature Range: -40°F to 150°F (-40°C to 65.6°C)
• Tube OD: 3/8 in.
