Dixon 1720202C 1/8 in. NPSM x 1/8 in. NPTF Brass Male Union

Dixon 1720202C 1/8 in. NPSM x 1/8 in. NPTF Brass Male Union

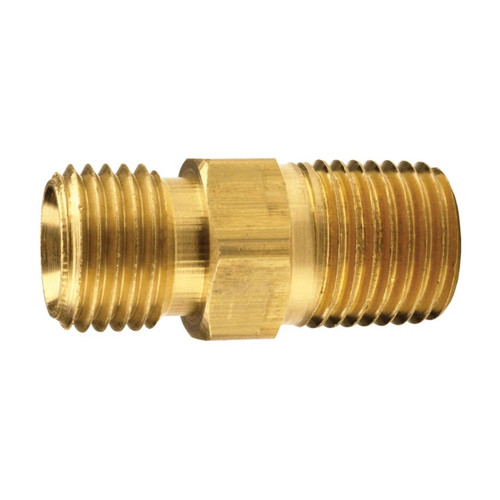

The Dixon 1720202C Brass Male Union is a precision-engineered fitting designed to connect 1/8 inch NPSM and 1/8 inch NPTF male threads. Constructed from durable brass, this compact union ensures reliable performance in a variety of industrial and fluid handling applications. With a hex size of 7/16 inch and a total length of just 0.94 inches, it offers a secure and space-efficient solution for joining threaded components. Ideal for use in pneumatic, hydraulic, and general-purpose systems, this fitting delivers corrosion resistance and long-lasting durability.

Features

• Durable Brass Construction: Made from high-quality brass for excellent corrosion resistance and mechanical strength.
• Compact Design: Measures under 1 inch in length, ideal for tight installations and confined spaces.
• Thread Compatibility: Connects 1/8 inch NPSM to 1/8 inch NPTF male threads for versatile use across systems.
• Precision Machining: Ensures a tight, leak-free seal in demanding applications.

Specifications

• Hex: 7/16 in.
• Length: 0.94 in.
• Male Thread: NPSM, NPTF
• Male Thread Size: 1/8 in.
• Material: Brass
• Size: 1/8 in. NPSM x 1/8 in. NPTF

Downloads

Specifications Sheet (PDF Download)

Dimensional Drawing (PDF Download)

Material Safety Data Sheet (MSDS) (PDF Download)

Material Safety Data Sheet (Brass) (PDF Download)

Data Sheet (PDF Download)
