Diesel Vent Kit w/ 1 in. Swivel for 550 Gal x 48 in. Double Wall Tank - FNPT

Diesel Vent Kit w/ 1 in. Swivel for 550 Gal x 48 in. Double Wall Tank - FNPT Description

The Diesel Vent Kit with 1 in. Swivel is designed for use with 550 gallon x 48 inch double wall tanks and provides a complete, compliant venting solution for diesel applications. This kit helps manage pressure and vapor release during tank filling and operation, supporting safe and efficient fuel storage. Built with durable, industry-standard components, it integrates seamlessly with compatible UL‑142 tanks and is configured with FNPT connections for dependable installation in commercial and industrial environments.

Features

• Complete Vent Assembly: Includes required venting, spill control, and monitoring components.
• FNPT Connections: Female NPT fittings allow standard and secure installation.
• Diesel Application: Specifically configured for diesel storage systems.
• Pressure And Vacuum Control: Helps regulate internal tank pressure during operation.
• Swivel Connection: 1 in. swivel supports flexible hose alignment during fueling.
• Tank-Specific Design: Engineered for 550 gallon x 48 in. double wall tanks.

Specifications

• Application: Diesel
• Connection Type: FNPT
• Swivel Size: 1 in.
• Tank Capacity: 550 Gal
• Tank Diameter: 48 in.
• Tank Type: Double Wall
• Vent Kit Type: Complete Vent Kit

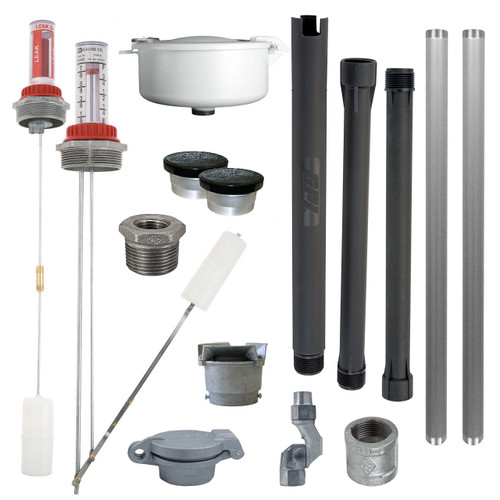

Kit Contents

• 2 in. x 48 in. Aluminum Nipple (Qty: 2)
• 15–40 in. Adjustable Complete Suction Pipe (Qty: 1)
• 14.5 in. Suction Pipe Extension (Qty: 1)
• 2 in. x 48 in. At‑A‑Glance Dual Gauge (Qty: 1)
• 2 in. x 46 in. Type K Leak Gauge (Qty: 1)
• 4 in. 8 oz Emergency Vent, Female Threaded With O‑Ring (Qty: 2)
• 2 in. Aluminum Updraft Vent (Qty: 1)
• 2 in. 3.5 Gal Aboveground Spill Container, MNPT (Qty: 1)
• 1 in. Two‑Plane Hose Swivel (Qty: 1)
• 4 in. x 2 in. 150 lb Hex Bushing, Black (Qty: 1)
• 2 in. 150 lb Galvanized Coupling (Qty: 1)
• 2 in. Aluminum Female NPT Fill Cap (Qty: 1)
