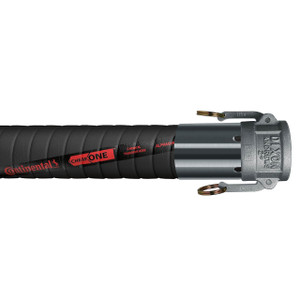

Continental ContiTech ChemOne 3 in. 200 PSI Chemical Transfer Hose w/ Stainless Male NPT Ends

Continental ContiTech Chem One is a durable, lightweight and flexible transfer hose specifically designed to handle the majority of today's industrial chemicals at elevated temperatures. For use in pressure, gravity flow and/or suction service. See Chemical Resistance Guide linked in the "Downloads" tab for chemical compatibility.

Features

• Tube compound is engineered to handle the majority of chemicals used in typical industrial applications
• Corrugated abrasion resistant cover
• Lighter and more flexible than the competition
• Easy to bend

Specifications

• ID: 3 in. (76.2 mm.)
• OD: 3.4 in. (89.2 mm.)
• Length: Per ft.
• Ends: Male NPT
• Tube: Alphasyn™ Modified Cross-Linked Polyethylene (Modified XLPE)
• Cover: Black Corrugated Abrasion-Resistant Omegasyn™ EPDM with Red Spiral Stripe
• Reinforcement: Spiral-Plied Synthetic Fabric with Double Wire Helix
• Bend Radius: 8 in. (203.2 mm.)
• Vacuum: 29 in. Hg (737 mm.)
• Maximum Working Pressure: 200 PSI (1.38 MPa)
• Hose Design Ratio (Burst Pressure): 4:1
• Temperature Range: -40°F to 250°F (-40°C to 121°C)
• Branding Example: CHEM-ONE™ Chemical Transfer Hose Alphasyn™ 200 PSI WP Continental ContiTech
• Color: Black with Red Stripe
• Weight: 1.59 lbs./ft. (2.37 kg./m.)

Downloads

Chemical Resistance Guide (PDF Download)
