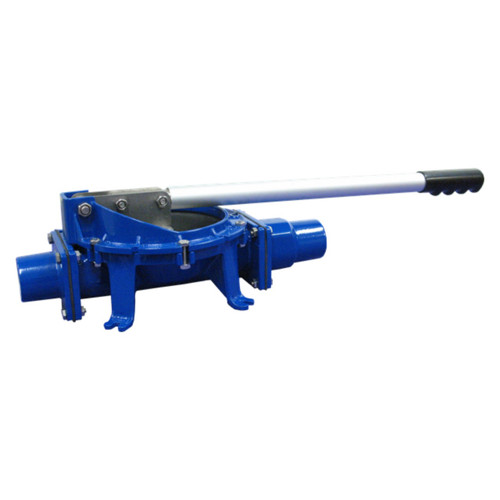

Bosworth GH-2600A Guzzler 1 1/4 in. FNPT 20 GPM Aluminum Universal Hand Pump

Bosworth GH-2600A Guzzler 1 1/4 in. FNPT 20 GPM Aluminum Universal Hand Pump Description

The Bosworth GH‑2600A Guzzler® Aluminum Universal Hand Pump is a high‑capacity manual diaphragm pump engineered for demanding liquid transfer applications where strength, reliability, and flexibility are required. Featuring an epoxy‑coated aluminum body and stainless steel actuation components, this pump delivers robust performance while resisting corrosion. With a flow rate of up to 20 gallons per minute at 72 strokes per minute, the GH‑2600A is designed to handle high‑volume transfer through 1‑1/4 inch to 2 inch hose systems. Its removable universal aluminum handle quickly converts between vertical (back‑and‑forth) and horizontal (up‑and‑down) pumping motions, while an adjustable clamp ring allows six different handle orientations for versatile installation and operation.

Features

• High‑Capacity Manual Pumping: Delivers up to 20 GPM for efficient, high‑volume liquid transfer.
• Durable Aluminum Construction: Epoxy‑coated aluminum body and clamp ring provide strength and corrosion resistance.
• Universal Convertible Handle: Removable aluminum handle switches easily between vertical and horizontal operation.
• Stainless Steel Actuation: Stainless steel clevis and button assembly ensure long service life and reliability.
• Adjustable Handle Orientation: Clamp ring allows six different handle positioning options.
• Wide Hose Compatibility: Accommodates hose sizes from 1‑1/4 in. to 2 in.

Specifications

• Body Material: Epoxy‑coated aluminum
• Clamp Ring Material: Epoxy‑coated aluminum
• Diaphragm Material:  Nitrile, double‑sided
• Flow Rate: 20 GPM
• Handle Material: Aluminum
• Handle Style: Universal, removable
• Head: 30 ft. Hose
• Connection Size: 1‑1/4 in. FNPT (inlet and outlet)
• Lift: 12 ft.; 22 ft. with check valve
• Max Pressure: 15 psi
• Max Service Temperature: 190°F (88°C)
• Pump Type: Manual diaphragm hand pump
• Valves: Flapper (Nitrile) Weight: 7.6 lb.
