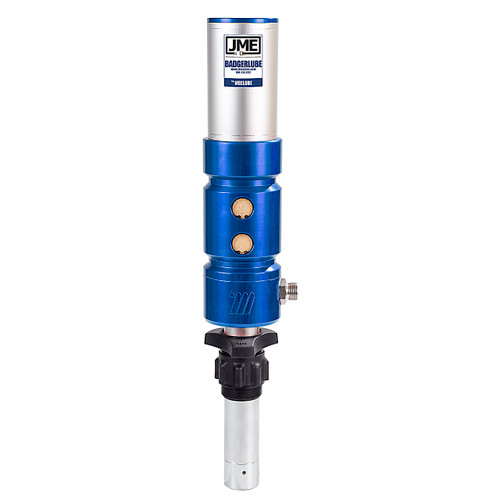

BadgerLube 803 3:1 Air Operated Oil Pump

BadgerLube 803 3:1, 10.56 GPM, Air Operated Oil Pump

Suitable for workshops, oil distribution applications, and for industrial vehicles in which it is requested a high delivery with more dispensing points. These pumps are advised for the transfer of low-medium viscosity oil (SAE 15/130) and anti-freeze for short to medium distances (131 - 164 ft). This double-acting oil pump guarantees the delivery of a continuous and constant flow, suitable for installations on distribution facilities. To optimize the performance and the time-life of the air-operated pumps we advise to that you use filtered and lubricated air.

Specifications

• Compression ratio: 3:1
• Air consumption: 89 GPM
• Noise level: 80 dB
• Shank diameter: 1.96 in. (50 mm)
• Shank length: 8.66 in. (220 mm)
• Working pressure: 87-116 PSI (6-8 bar)
• Air Inlet connection: 1/2 in. FNPT
• Oil outlet connection: 3/4 in. MNPT
• Oil delivery capacity: 10.56 GPM @ 116 PSI (40 l/min @ 8 bar)
• Seals: Polyurethane

Downloads

Specification Sheet (PDF Download)
