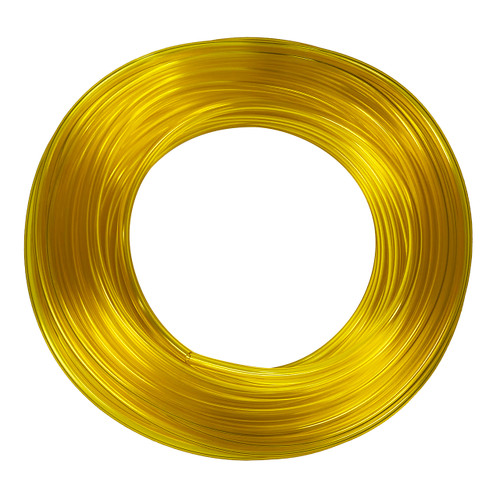

BadgerFlex FuelFLEX 1/8 in. Yellow PVC Fuel Tubing

BadgerFlex FuelFLEX 1/8 in. Yellow PVC Fuel Tubing

BadgerFlex's Finger Lake FuelFLEX 65 1/8 in. fuel tubing (8365-4245) is tubing made specifically for use with petroleum-based products. Each FuelFLEX 65 tubing has a distinct translucent yellow color which identifies it as a fuel line. The clear PVC material allows users to track flow and will not crack or dry out. This formulation also boasts a higher resistance to ethanol and a longer shelf life than traditional fuel formulations. Shop the JME site for the best selection of BadgerFlex fuel tubing in the industry.

Note: Price is per foot. Minimum is 10 ft.

Features

• Designed for use with petroleum-based liquids
• Flexible and easy to install
• Yellow color is easy to identify
• Resists hardening and swelling after use
• Has a higher resistance to ethanol commonly found in petroleum products
• Applications: petroleum-based products, fuel drain lines/vent tubes/overflow tubes, gasoline/heating oils/cutting compounds/coolant transfer, lab handling of distillates
• NOT intended for use with food or beverages

Specifications

• Size ID: 1/8 in.
• Hose OD: 1/4 in.
• Wall Size: 1/16 in.
• Weight Per Foot: 0.02 lbs./ft
• Weight: 0.2 lbs.
• Pressure: 62 PSI
• Material: PVC
• Color: Yellow
• Temperature Range: -15°F to 165°F
• Burst Pressure: 248 PSI
• Bend Radius: 4 in. x OD
• Safety Factor: 4:1
• Tensile Strength: 2390 PSI
• Standards / Compliance: REACH, RoHS
• Series: FuelFLEX 65

Downloads

Specification Sheet (PDF Download)
