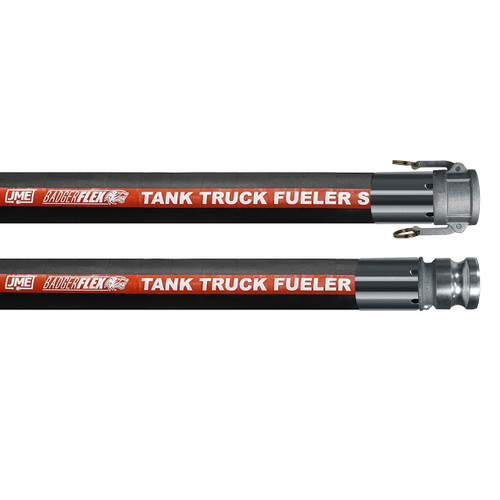

BadgerFlex 4 in. Petroleum Suction & Discharge Hose Assembly w/ Part C Female Coupler x Part E Male Adapter Ends - Black

BadgerFlex 4 in. Petroleum Suction & Discharge Hose Assembly with Part C Female Coupler x Part E Male Adapter Ends

The BadgerFlex 4 in. Petroleum Suction & Discharge Hose Assembly is designed for demanding petroleum transfer applications involving gasoline, oil, and other petroleum-based products with up to 50% aromatic content. This hose assembly is suitable for both suction and discharge service in tank truck and tank car operations where flexibility, durability, and pressure performance are required. Constructed with a nitrile tube and a nitrile-PVC cover, the hose is reinforced with multiple plies and a helix wire to maintain structural integrity under pressure and vacuum conditions. The assembly is finished with aluminum Part C female coupler and Part E male adapter ends to ensure secure, industry-standard connections in petroleum transfer systems.

Features

• Petroleum-Rated Construction: Designed for gasoline, oil, and petroleum-based product transfer with up to 50% aromatic content.
• Heavy-Duty Reinforcement: 2-ply reinforcement with helix wire for strength and vacuum resistance.
• Durable Materials: Nitrile tube and nitrile-PVC cover for chemical resistance and long service life.
• Pre-Assembled Hose Assembly: Factory-assembled with aluminum Part C female coupler and Part E male adapter ends.
• Wide Temperature Capability: Operates reliably in cold and high-temperature environments.

Specifications

• Applications: Petroleum Suction & Discharge
• Brand: BadgerFlex
• Burst Pressure: 450 PSI (31 BAR)
• Color: Black
• Cover Material: Nitrile-PVC
• Ends: Part C Female Coupler x Part E Male Adapter (Aluminum)
• Inner Diameter: 4 in.
• Outer Diameter: 4.57 in.
• Part Number: ABFHTTF400X10CALXEAL
• Reinforcement: 2 Ply + Helix Wire
• Safety Factor: 3:1
• Temperature Range: -40°F to 180°F (-40°C to 82.2°C)
• Tube Material: Nitrile
• Weight Per Foot: 7.03 lb.
• Working Pressure: 150 PSI (10.3 BAR)
