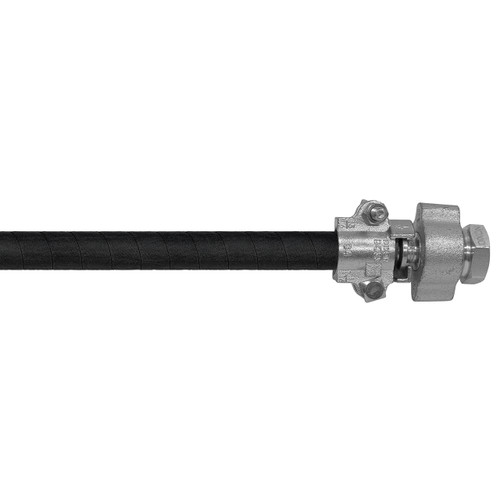

BadgerFlex 1/2 in. Steam Hose Assembly w/ Female NPT Ground Joint Ends - Black

BadgerFlex 1/2 in. Steam Hose Assembly with Female NPT Ground Joint Ends Description

The BadgerFlex 1/2 in. Steam Hose Assembly is designed for the transfer of saturated and superheated steam in demanding industrial environments. Constructed with a durable EPDM tube and reinforced with wire braid, this hose assembly delivers reliable performance under high temperature and pressure conditions. The black EPDM cover provides resistance to heat and wear, while the female NPT ground joint ends ensure a secure and dependable connection. This assembly is suitable for use in applications such as shipyards, chemical plants, and general industrial steam transfer where consistent performance and durability are required.

Features

• High-Temperature Steam Capability: Designed for saturated and superheated steam service up to 406°F.
• Durable EPDM Tube: EPDM tube material provides excellent resistance to heat and steam.
• Wire Braid Reinforcement: Reinforced construction enhances strength and pressure handling.
• Ground Joint End Connections: Female NPT ground joint ends provide secure and reliable coupling.
• Industrial-Grade Cover: Black EPDM cover offers durability in harsh industrial environments.

Specifications

• Applications: Steam
• Brand: BadgerFlex
• Burst Pressure: 2500 PSI (172.3 BAR)
• Color: Black
• Cover Material: EPDM
• Ends: Female NPT Ground Joint Ends
• Inner Diameter: 1/2 in.
• Outer Diameter: 0.91 in.
• Part Number: JME-RSH176-012
• Reinforcement: Wire Braid
• Safety Factor: 10 to 1
• Temperature Range: -22°F to 406°F (-30°C to 207.7°C)
• Tube Material: EPDM
• Weight Per Foot: 1.78 lb.
• Working Pressure: 250 PSI (17.2 BAR)
