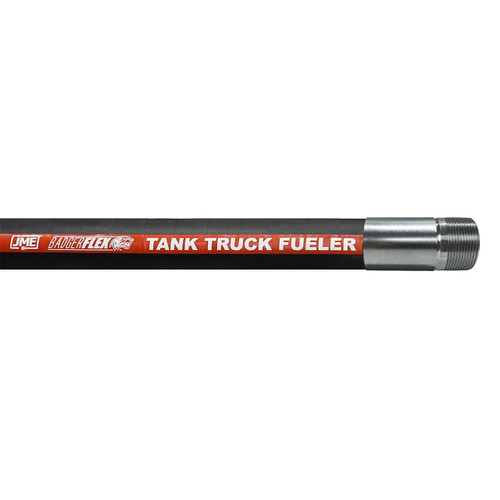

BadgerFlex 1 1/2 in. Fuel Transfer Hose Assembly w/ Male NPT Ends - Black

BadgerFlex 1 1/2 in. Fuel Transfer Hose Assembly with Male NPT Ends

The BadgerFlex 1 1/2 in. Fuel Transfer Hose Assembly is designed for tank truck and in-plant operations involving gasoline, oil, and other petroleum-based products with up to 50% aromatic content. This hose assembly supports pressure, gravity flow, and full suction service, making it suitable for demanding fuel transfer applications. Constructed with a nitrile tube and reinforced with multiple plies and a helix wire, it provides durability, flexibility, and resistance to petroleum products while maintaining reliable performance across a wide temperature range. The assembly is finished in black and is equipped with male NPT ends for secure and compatible connections in fuel handling systems.

Features

• Fuel Transfer Capability: Designed for gasoline, oil, and petroleum-based products up to 50% aromatic content
• Durable Construction: Reinforced with multiple plies and helix wire for pressure and suction service
• Flexible Design: Suitable for pressure, gravity flow, and full suction applications
• Chemical Resistance: Nitrile tube and cover materials resist oils and petroleum products
• Secure Connections: Equipped with male NPT ends for reliable installation

Specifications

• Applications: Fuel Transfer, Petroleum Transfer
• Brand: BadgerFlex
• Burst Pressure: 600 PSI (41.3 BAR)
• Color: Black
• Cover Material: Nitrile-PVC
• Ends: Male NPT
• Inner Diameter: 1 1/2 in.
• Outer Diameter: 1.93 in.
• Part Number: ABFHTTF150X10MXM
• Reinforcement: 2 Ply + Helix Wire
• Safety Factor: 4 to 1
• Temperature Range: -40°F to 180°F (-40°C to 82.2°C)
• Tube Material: Nitrile
• Weight Per Foot: 2.78 lb
• Working Pressure: 150 PSI (10.3 BAR)
