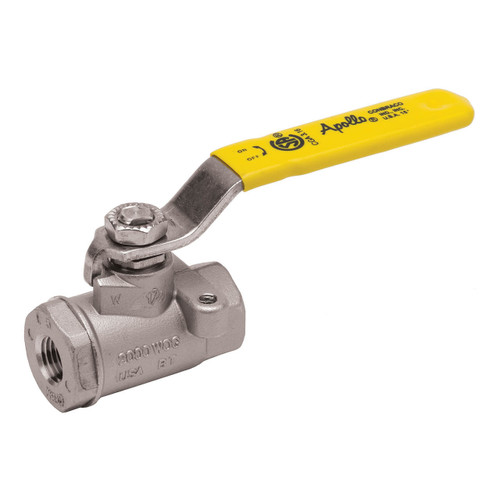

Apollo Valves 76-105-01A 1 in. FNPT 2-Pc Ball Valve, Stainless Steel - 2000 PSI

Apollo Valves 76-105-01A 1 in. FNPT 2-Pc Ball Valve, Stainless Steel - 2000 PSI Description

The Apollo Valves 76-105-01A 1-inch 2-piece ball valve is engineered for dependable flow control in demanding gas and water applications. Constructed with a stainless steel body and a 316 stainless steel ball, this valve delivers high strength, corrosion resistance, and long service life. The standard port design, FNPT end connections, and lever handle actuator provide smooth operation and easy installation in a wide range of systems. Designed for industrial and commercial use, this domestic-made valve supports high working pressures while meeting multiple industry standards and approvals.

Features

• High-Pressure Performance: Rated for up to 2000 psi CWP, supporting demanding operating conditions.
• Durable Stainless Steel Construction: Stainless steel body and 316 stainless steel ball enhance corrosion resistance and reliability.
• Blow-Out Proof Stem Design: Improves safety and performance during high-pressure operation.
• Actuator-Ready Design: Includes a mounting pad for easy actuator installation and future automation.
• Versatile Media Compatibility: Suitable for gas and water applications, including vacuum service.

Specifications

• Actuator Type: Lever Handle
• Ball Material: 316 Stainless Steel
• Body Material: Stainless Steel
• Brand: Apollo™
• Country Of Origin: US
• Domestic Or Import: Domestic
• End Style: FNPT
• Includes: Adjustable Packing Gland
• Inlet To Outlet Length: 3.34 in.
• Media: Gas / Water
• Nominal Size: 1 In.
• Orifice Size: 0.87 in.
• Port Type: Standard
• Pressure Class: 250 #
• Pressure Rating: 2000 Psi
• CWP Series: 76-100
• Softgoods Material: MPTFE / PTFE
• Top To Inlet Center: 1.67 in.
• Trim Material: 316 Stainless Steel / PTFE
• Type: 2-Piece
• Warranty: 5 Years
• Weight: 1.63 lbs.
