AMETEK Hunter Spring ML2930 & ML3416 Heavy Duty Grounding Reels w/Auto Retraction Brake

AMETEK Hunter Spring’s ML2930 and ML3416 Series grounding reels are the solution to your grounding needs in extreme environmental conditions. With operating temps of -65° to 125° F, safe brake retraction system, steel components and cantilever type frame, the reels are heavy duty and easy to mount to vehicles. A latching mechanism holds the cable at the desired length. With a slight pull to release, the cable will retract at 2-7 feet per second. Retraction speed is governed by an internal centrifugal brake mechanism designed to limit the speed from 2 ft/sec to 7ft/sec.

Features

• 50', 75' or 100' cable length
• Galvanized steel cable with orange Hytrel® coating
• Solid Copper Gator Clamp
• 10 ohms max between clamp and mounting base
• Weather resistant red powder coat finish
• Life cycle tested to 5,000 cycles

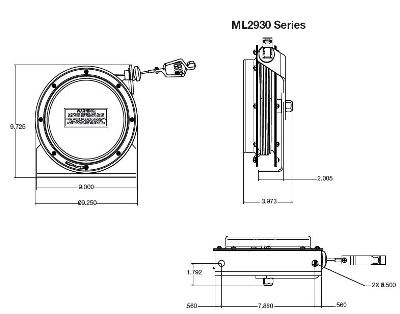

ML2930 DIM.

ML3416 DIM.
