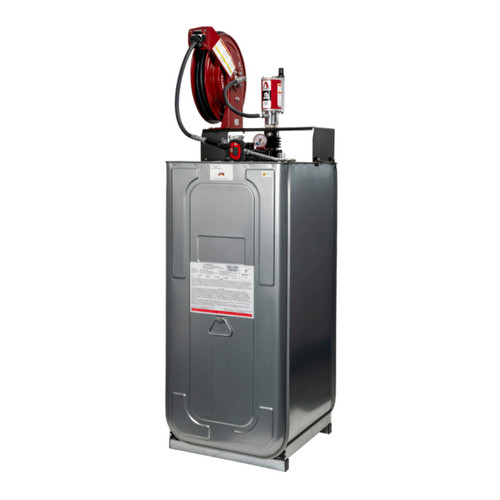

Alemite 165 Gal. Double Wall Tank Package

Alemite 165 Gal. Double Wall Tank Package Description

The Alemite 165 Gal. Double Wall Tank Package is a complete on-site fluid storage and dispensing solution designed to support efficient oil management and long-term operational control. Shipping fully assembled and compliant with UL SU2258 standards and EPA SPCC regulations, this package provides a safe, compact, and economical option for storing and dispensing a wide range of industrial fluids. Its lightweight double wall construction delivers secondary containment capable of holding 110% of the inner tank’s capacity, while integrated Alemite components ensure reliable performance, fast installation, and consistent fluid control.

Feature

• Air-Ready Installation: Easily connects to shop air with an included filter regulator to maintain safe operating pressure up to 150 PSI.
• Compact Design: Space-saving footprint provides economical performance without sacrificing protection or capacity.
• Double Wall Construction: Outer tank acts as secondary containment and meets UL SU2258 standards.
• Fully Assembled Package: Ships complete and ready for installation to minimize setup time.
• Integrated Alemite Components: Includes the 9968 stationary RAM pump, 8078-D heavy-duty oil reel, 3670 electronic fluid meter, and 7936 filter regulator.
• Lightweight Build: Up to 50% lighter than conventional steel tanks for easier handling and placement.
• Secondary Containment; Outer tank layer acts as a secondary containment and can hold 110% of the inner tank fluids
• Multi-Fluid Compatibility: Designed for motor oil, gear oil, hydraulic fluids, ATF, and heating oil.
• Regulatory Compliance: Compliant with EPA SPCC regulations for on-site fluid storage.
• Transport-Friendly Handling: Wide front-positioned handles allow easy movement when empty.

Specifications

• Tank Capacity: 165 Gallons
• Reel Length: 50 ft.
• Ports: (4) 2 in. ports with tank gauge, lockable fill cap, and emergency vent included
• Reel: HD oil reel
• Hose: 1/2 in. ID x 50 ft.L
• Hose Pressure: Max 1500 PSI
• Air inlet: 1/4 in. (6mm)NPTF
• Fuel Meter: Pints, Quarts, gallons or liters
• Filter Regulator: 1/4 in. NPTF/150 PSI Inlet pressure/ 32° to 125°F Operating temperature
• Tank Material: Aluminum
• Compliance: UL SU2258, EPA SPCC
• Model: ALM165DWTP-V1

Package Contents

• 165 Gal. Double Wall Tank
• Alemite 9968: Stationary RAM Pump
• Alemite 3670: Electronic fluid meter
• Alemite 8078-D: Heavy duty oil reel, 50ft. 1/2 in. ID
• Alemite 7936: Filter regulator
