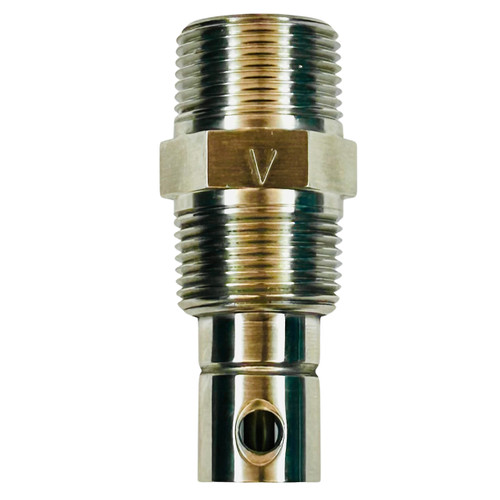

ACS Conductivity Sensor ACS41 3/4 in. NPT 1 in. Insertion K=1.0

Made in the USA
SKU:
AC1033
Manufacturer:
ACS
Product Type:
Contacting Electrical Conductivity Sensor
Material:
316 Stainless Steel
Size:
3/4 in. Male
Weight:
3.00 LBS
$263.42
Adding to cart… The item has been added

The ACS41 conductivity sensor is a testament to precision and resilience, meticulously designed for high-pressure, high-temperature conductivity measurements. It is an excellent choice for critical applications like boiler control and cooling tower systems. Beyond these, its versatility extends to tasks such as blowdown control, condensate monitoring, leak detection on heat exchangers, and ensuring steam purity. What sets the ACS41 apart is its rugged, one-piece body design, eliminating concerns about weld defects, including pinhole leaks.The ACS41 sensor is built to withstand the harshest conditions. It is constructed from solid 316 stainless steel, a PEEK insulator, and specialty high-temperature Parker O-rings. In the demanding environment of hot water, the front O-ring bravely confronts the most challenging conditions, preserving the integrity of the rear O-ring and maintaining a steadfast seal. The double O-ring seals meticulously block all conceivable leak paths, assuring maximum on-stream reliability even in the most critical industrial settings. Trust the ACS41 for precision and dependability in your high-pressure, high-temperature conductivity measurements.

Features

  • Measure conductivity directly in process temperatures up to 205ºC @ 250 PSIG.
  • O-ring sealed on all versions for increased dependability.
  • Boiler condensate and blowdown control without coolers
  • One-piece body design, eliminating concerns about weld defects, including pinhole leaks.
  • Constructed from solid 316 stainless steel, a PEEK insulator, and specialty high-temperature Parker O-rings
  • Double O-ring seals meticulously block all conceivable leak paths
  • 1 in. Insertion depth

Specifications

  • Cell Constant: K=1.0
  • Insulator: PEEK
  • O-rings: Parker Hi-Temp
  • Electrodes: 316 Stainless Steel
  • Fittings: 3/4 in. NPT SS
  • Pressure: Hi Temperature 250 PSIG at 205°C, Low Temperature 500 PSIG at 100°C
  • Electrical: Terminal strip to accept stripped leads, 14-24 ga
  • Temperature Element: Pt1000 is standard.
  • Operating Temp Range: 0-205ºC
  • Operating Pressure Range: 0-250 PSIG @ 205ºC OR 0-500 PSIG @ 100ºC
  • NPT: Male
  • NPT Inches: Dual 3/4 in.
  • Material: 316 Stainless Steel
  • Color: Metal
  • Measurement Range: Medium to High Conductivity
  • μS Range: 10 - 10,000μ S
  • TDS Range: 6.4 - 6,400 ppm
  • Accuracy: "Out of Box" ±5% ±1% Repeatability
  • Length: 1.80 in. Overall Length 1.00 in. Insertion Depth
