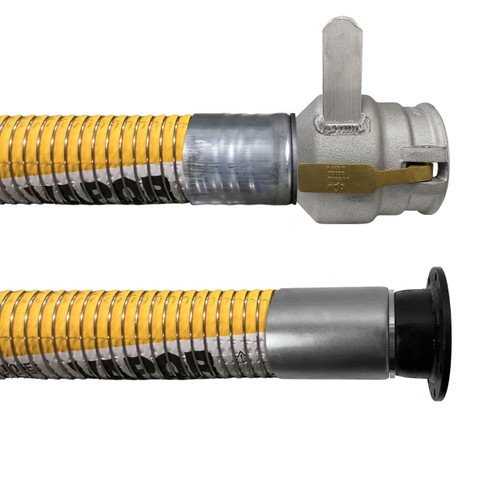

Willcox Composite 4 in. Vapor Recovery Hose Assemblies w/ CPP with Handle x TTMA Ends

Willcox Composite 4 in. Vapor Hose Assembly is compatible with gasoline, diesel, and most biofuels. This hose comes fully assembled with a TTMA Flange on one end and an OPW CPP female coupler with custom handle. We cut all our hose to length, attach the ends, and ground all of our hose assemblies. Please call for pricing on other vapor hose assemblies, due to the wide variations of hose length and fittings involved. We want to be sure you get the right vapor hose for your application. Other lengths and fittings available - please call 1 (800) 333-3331 for details!

Features

• Constructed from high grade polypropylene
• Lightweight and flexible even in sub-zero temperatures
• Abrasion, UV and Ozone resistant
• Designed for use in tank truck, railcar and in plant applications

Specifications

• Series: Willcox Vapor Recovery
• Inside Diameter (I.D.): 4 in. (101.6 mm.)
• Length: 10 - 30 ft. - Other Lengths Available - Please Call 1 (800) 333-3331 for More Information
• Hose Ends: 4 in. Female Vapor Camlock Coupler x 4 in. TTMA
• Cover: PVC Coated Nylon
• Inner Lining: High Grade Polypropylene
• Inner Wire: T316 Stainless Steel Wire
• Outer Wire: Galvanized Steel
• Minimum Bend Radius: 9 in. (225 mm.)
• Working Pressure: 100 PSI (7 bar)
• Vacuum Rating: 26 in. Hg (0.9 bar)
• Temperature Range: -22°F to +180°F (-30°C to +80°C) - Service Temperature Depends on Actual Application
• Fuel Compatibility: Gasoline, Diesel and Most Biofuels, Such as Ethanol (up to E98) and Biodiesel Vapors (B100 Meeting ASTM D-6751)
• Standards: EN13765:2010, Type 2, IMO, IBC, BS5842, NAHAD-600:2005
• Color: Yellow with White Stripe
• Weight: 1.8 lbs./ft. (2.7 kg./m.)
