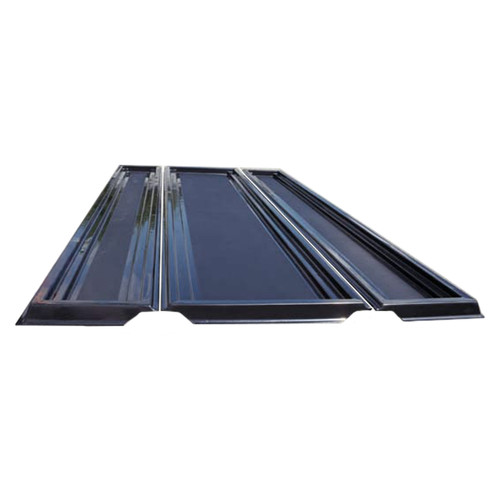

UltraTech International 7251 Ultra-Pellet Railroad Side Pan System - 20 ft., Composite Model

UltraTech International 7251 Ultra-Pellet Railroad Side Pan System - 20 ft., Composite Model

The Ultra-Pellet Pan® Composite Model is an advanced containment solution designed to capture plastic pellets and resin spills from railroad tankers, ensuring environmental protection and operational efficiency. Featuring large, 20-foot pans, this system effectively prevents pellets from entering the environment while allowing rainwater to drain out through built-in drains. The composite system is highly customizable, enabling it to be tailored to the specific length requirements of any site. Installation is straightforward, requiring minimal site preparation and no excavation, making it an economical and practical choice for various applications.

IMPORTANT: The Ultra-Pellet Pan will not contain liquids of any kind!

Features

• High Strength Construction: Made with nonporous, corrosion-resistant fiberglass for years of reliable service.
• Low Profile: Dimensions of 20 ft. long x 4 7/8 in. high.
• Pandrol Compatible: Designed to work seamlessly with Pandrol systems.
• Rail Side Gasket Sealing System: Prevents spills from leaking between pans and rails.
• Easy Installation: Requires minimal site preparation and no excavation.
• Polyethylene (LLDPE) Grating: Available for safer foot traffic.

Specifications

• Dimensions: 255 in. L x 36 in. W x 4.5 in. H
• Product Type: Side Pan System
• Size: 20 ft.

Includes

• Side Pan: (1) Part #7247
• Rail Gasket: (2) Part #7225
• Rail Clip: (2) Part #7230
• Grates: (5) Part #0420

Downloads

Installation Instructions (PDF Download)

Warranty Information (PDF Download)

Rail Height, Width, and Pandrol Worksheet (PDF Download)
