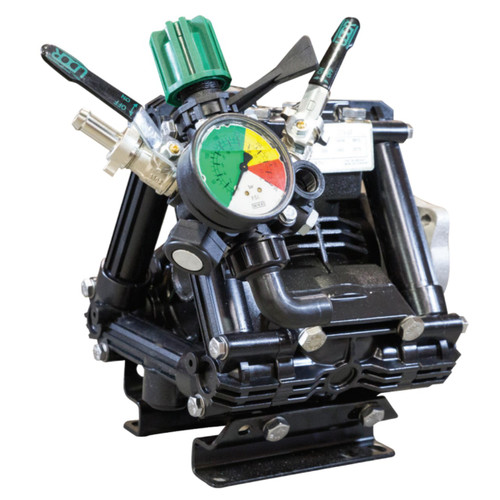

Udor ZETA 85 VAGR3/4 1 1/2 in. Diaphragm Pump, 3 cylinders, 22 GPM, 300 PSI

Udor ZETA 85 VAGR3/4 1 1/2 in. Diaphragm Pump, 3 cylinders, 22 GPM, 300 PSI

The Udor ZETA 85 VAGR3/4 is a high-performance, low-pressure diaphragm pump designed for demanding horticultural and agricultural spraying applications. Featuring a durable anodized aluminum body, plasticized aluminum heads, stainless steel valves, and glass-filled nylon manifolds, this pump ensures long-lasting reliability in tough environments. Equipped with a standard control valve and pressure gauge, the ZETA 85 delivers consistent performance with a maximum flow of 22 GPM and pressure up to 300 PSI. Its gear reduction drive configuration is optimized for 3/4 inch shaft gas engines ranging from 4 to 6.5 HP, making it an excellent choice for professional spraying systems.

Industries: Lawn Care, Fire Fighting, Orchard/Nursery Spraying, De-Mucking, Decontamination, White Washing, Aquatic Plant Control, Spray Insulation, Hydrostatic Testing, Fluid Transfer, Chlorine Application, Crop Spraying, Fertilizer Application, Aircraft De-icing, Pest Control, Soft Wash

Features

• Robust Construction: Anodized aluminum body with corrosion-resistant components for durability.
• Efficient Performance: Delivers up to 22 GPM and 300 PSI for reliable spraying operations.
• Versatile Applications: Ideal for horticultural and agricultural spraying tasks.
• Integrated Control System: Includes a control valve with pressure gauge for easy monitoring.
• Gear Reduction Drive: Compatible with 3/4 in. shaft gas engines (4–6.5 HP) for smooth operation.

Specifications

• Bar: 20
• Bypass Port: 3/4 in. Hose Barb
• Dimensions: 16 in. L x 11 in. W x 12 in. H
• Drive Configuration: Gear Reduction for 3/4 in. Shaft Gas Engine
• GPM: 22
• Inlet Port: 1-1/2 in. Hose Barb
• Lubrication: 39 oz. Udor Lube 40W Premium Pump Oil
• Maximum Pressure: 300 PSI
• Maximum RPM: 550
• Model: ZETA 85 VAGR3/4
• Outlet Ports: (2) 1/2 in. Hose Barb

Downloads

Specification Sheet (PDF Download)
