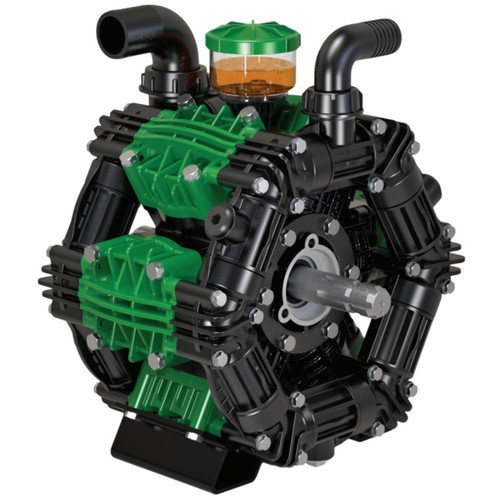

Udor ZETA 260 TS2C 2 in. Diaphragm Pump, 6 cylinders, 68 GPM, 300 PSI

Udor ZETA 260 TS2C 2 in. Diaphragm Pump, 6 cylinders, 68 GPM, 300 PSI

The Udor ZETA 260 TS2C is a heavy-duty, low-pressure diaphragm pump designed for large-scale horticultural and agricultural spraying applications. Built with anodized aluminum bodies, plasticized aluminum heads, stainless steel valves, and glass-filled nylon manifolds, this pump offers exceptional durability and corrosion resistance. Delivering a maximum flow of 68 GPM and pressure up to 300 PSI, the ZETA 260 ensures high-volume performance for demanding tasks. It features a 1-3/8 inch 6-spline male PTO thru-shaft for reliable power transfer and is engineered for efficiency and longevity in professional spraying systems.

Industries: Lawn Care, Fire Fighting, Orchard/Nursery Spraying, De-Mucking, Decontamination, White Washing, Aquatic Plant Control, Spray Insulation, Hydrostatic Testing, Fluid Transfer, Chlorine Application, Crop Spraying, Fertilizer Application, Aircraft De-icing, Pest Control, Soft Wash

Features

• High-Volume Output: Provides up to 68 GPM for large-scale spraying operations.
• Durable Construction: Anodized aluminum body and stainless-steel components for long-lasting performance.
• Versatile Applications: Ideal for horticultural and agricultural spraying tasks.
• Corrosion-Resistant Design: Glass-filled nylon manifolds and plasticized aluminum heads for added protection.
• PTO Drive Compatibility: Equipped with a 1-3/8 in. 6-spline male PTO thru-shaft for secure connection.

Specifications

• Bar: 20
• Dimensions: 14.5 in. L x 15.5 in. W x 18.5 in. H
• Drive Configuration: 1-3/8 in. 6-Spline Male PTO Thru-Shaft
• GPM: 68
• Inlet Port: 2 in. HB
• Lubrication: 90 oz. Udor Lube 40W Premium Pump Oil
• Maximum Pressure: 300 PSI
• Maximum RPM: 540
• Model: ZETA 260 TS2C
• Outlet Port: 1-1/2 in. HB
• Weight: 80 lbs.

Downloads

Specification Sheet (PDF Download)
