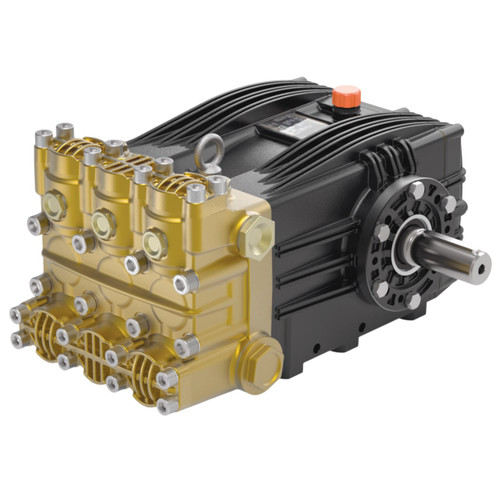

Udor VX-B 95/280 R Plunger Pump W/ 35 mm Solid Keyed Shaft, 24.8 GPM, 4060 PSI

Udor VX-B 95/280 R Plunger Pump W/ 35 mm Solid Keyed Shaft, 24.8 GPM, 4060 PSI

The Udor VX-B 95/280 R is a high-performance industrial plunger pump engineered for demanding applications such as sewer jetting, hydro-excavation, UHP fire fighting, mining, misting, street cleaning, and vehicle wash systems. Delivering a maximum flow of 24.8 GPM and pressures up to 4060 PSI, this pump combines durability and efficiency. It features a heavy-duty brass manifold, solid ceramic plungers, and stainless steel plunger guides and check valves for superior reliability. With a 35mm solid keyed shaft and rated speeds of 1250 RPM, the VX-B 95/280 R ensures consistent operation in high-pressure environments.

Industries: Pressure Washing, Truck Wash, Car Wash, Food Processing, In Plant Cleaning Systems, Graffiti Removal, Fire Fighting, Sewer Jetting, Hydro Excavating, Reverse Osmosis, Desalination Process, De-Mucking, Misting/Fogging/Cooling, Air Conditioning Cleaning, Ground and Sod Aeration, Machine Tool Coolant, Tree Debarking, Directional Boring and Drilling, Hydrostatic Testing, Soft Wash

Features

Durable Construction: Heavy-duty brass manifold for corrosion resistance; bronze connecting rods for strength
High-Performance Components: Solid ceramic plungers; stainless steel plunger guides and check valves
Optimized Design: Replaceable PTFE-coated body guides; heavy-duty flat base high-pressure seals
Temperature & Pressure Handling: Maximum fluid temperature of 160°F; rated for up to 4060 PSI

Specifications

• Crankshaft Stroke: 42.0mm
• GPM: 24.8
• Inlet Size: 1-1/2 in. BSP-F
• Lubrication: 128 oz Udor Lube
• Max Pressure: 4060 PSI / 280 Bar
• Max Speed: 1250 RPM
• Model: VX-B 95/280 R
• Outlet Size: 1 in. BSP-F
• Plunger Diameter: 28mm
• Power Requirement: 70.0 HP Electric
• Seal Kit: 6061.N2
• Valve Kit: 6061.N3

Downloads

Specification Sheet (PDF Download)
