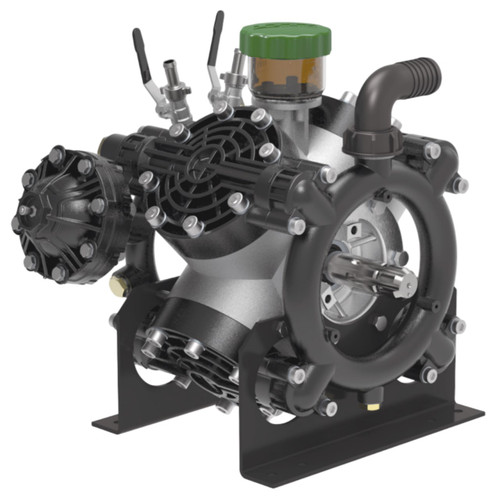

Udor OMEGA 170 TS2C 1 1/2 in. Diaphragm Pump, 4 cylinders, 46 GPM, 725 PSI

Udor OMEGA 170 TS2C 1 1/2 in. Diaphragm Pump, 4 cylinders, 46 GPM, 725 PSI

The Udor OMEGA 170 TS2C is a high-pressure, high-volume diaphragm pump designed for demanding horticultural and agricultural spraying applications. Constructed with anodized aluminum, brass, and stainless steel components, this pump offers exceptional durability and corrosion resistance. It includes mounting rails and a 6005.05 control unit with a pressure gauge for precise operation. Delivering a maximum flow of 46 GPM and pressure up to 725 PSI, the OMEGA 170 ensures superior performance for large-scale spraying tasks. Its 1-3/8 inch 6-spline male PTO thru-shaft provides reliable power transfer, making it an excellent choice for professional spraying systems.

Industries: Lawn Care, Fire Fighting, Orchard/Nursery Spraying, De-Mucking, Decontamination, White Washing, Aquatic Plant Control, Spray Insulation, Hydrostatic Testing, Fluid Transfer, Chlorine Application, Crop Spraying, Fertilizer Application, Aircraft De-icing, Pest Control, Soft Wash

Features

• High-Pressure Capability: Handles up to 725 PSI for demanding spraying applications.
• High-Volume Output: Provides 46 GPM for efficient large-scale operations.
• Durable Construction: Built with anodized aluminum, brass, and stainless steel for long-lasting performance.
• Integrated Control System: Includes 6005.05 control unit with pressure gauge for easy monitoring.
• PTO Drive Compatibility: Equipped with a 1-3/8 in. 6-spline male PTO thru-shaft for secure connection.

Specifications

• Bar: 50
• Bypass Port: 1 in. HB
• Dimensions: 17.4 in. L x 15.5 in. W x 17.2 in. H
• Drive Configuration: 1-3/8 in. 6-Spline Male PTO Thru-Shaft
• GPM: 46
• Inlet Port: 1-1/2 in. HB
• Lubrication: 84 oz. Udor Lube 40W Premium Pump Oil
• Maximum Pressure: 725 PSI
• Maximum RPM: 550
• Model: OMEGA 170 TS2C
• Outlet Ports: (2) 1/2 in. HB Valve, 3/4 in. FPT

Downloads

Specification Sheet (PDF Download)
