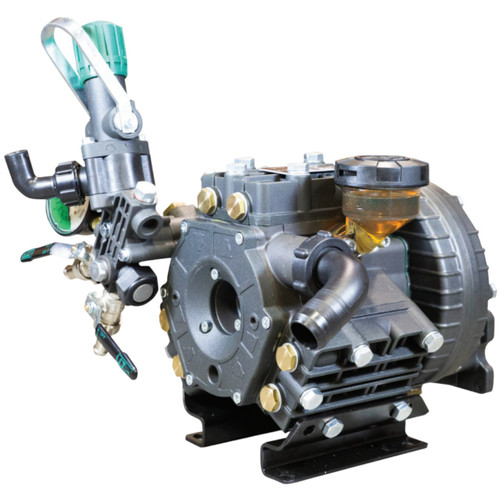

Udor KAPPA 55 VAGR3/4 1 1/4 in. Diaphragm Pump, 3 cylinders, 15 GPM, 350 PSI

Udor KAPPA 55 VAGR3/4 1 1/4 in. Diaphragm Pump, 3 cylinders, 15 GPM, 350 PSI

The Udor KAPPA 55 VAGR3/4 is a medium-pressure diaphragm pump designed for horticultural, agricultural, lawn care, nursery, pest control, and turf spraying applications. It is also suitable for aircraft de-icing, hydrostatic testing, and cleaning tasks. Built with anodized aluminum construction and stainless steel liquid handling parts, this pump offers durability and corrosion resistance. Delivering a maximum flow of 15 GPM and pressure up to 350 PSI, the KAPPA 55 ensures reliable performance for a wide range of spraying operations. Its gear reduction drive configuration is compatible with 3/4 inch shaft gas engines rated between 4 and 6.5 HP.

Industries: Lawn Care, Fire Fighting, Orchard/Nursery Spraying, De-Mucking, Decontamination, White Washing, Aquatic Plant Control, Spray Insulation, Hydrostatic Testing, Fluid Transfer, Chlorine Application, Crop Spraying, Fertilizer Application, Aircraft De-icing, Pest Control, Soft Wash

Features

• Medium-Pressure Capability: Handles up to 350 PSI for versatile spraying applications.
• Durable Construction: Anodized aluminum body and stainless-steel components for long-lasting performance.
• Wide Application Range: Ideal for horticulture, agriculture, pest control, turf care, and more.
• Compact Design: Internally manifolded for efficient operation and easy maintenance.
• Gear Reduction Drive: Compatible with 3/4 inch shaft gas engines (4–6.5 HP) for smooth operation.

Specifications

• Bar: 24
• Bypass Port: 3/4 in. HB
• Dimensions: 9.5 in. L x 12.5 in. W x 10.5 in. H
• Drive Configuration: Gear Reduction for 3/4 in. Shaft Gas Engine
• GPM: 15
• Inlet Port: 1-1/4 in. HB
• Lubrication: 23 oz. Udor Lube 40W Premium Pump Oil
• Maximum Pressure: 350 PSI
• Maximum RPM: 550
• Model: KAPPA 55 VAGR3/4
• Outlet Ports: (2) 1/2 in. HB
