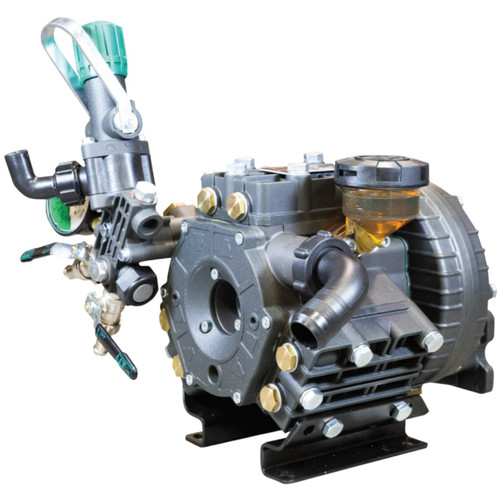

Udor KAPPA 55 VAGR1 1 1/4 in. Diaphragm Pump, 3 cylinders, 15 GPM, 560 PSI

Udor KAPPA 55 VAGR1 1 1/4 in. Diaphragm Pump, 3 cylinders, 15 GPM, 560 PSI

The Udor KAPPA 55 VAGR1 is a medium-pressure diaphragm pump designed for a wide range of applications, including horticultural, agricultural, lawn care, nursery, pest control, and turf spraying. It is also suitable for aircraft de-icing, hydrostatic testing, and cleaning tasks. Built with anodized aluminum construction and stainless steel liquid handling parts, this pump offers durability and corrosion resistance. Delivering a maximum flow of 15 GPM and pressure up to 560 PSI, the KAPPA 55 ensures reliable performance for professional spraying operations. Its gear reduction drive configuration is compatible with 1 in. shaft gas engines rated between 8 and 20 HP.

Industries: Lawn Care, Fire Fighting, Orchard/Nursery Spraying, De-Mucking, Decontamination, White Washing, Aquatic Plant Control, Spray Insulation, Hydrostatic Testing, Fluid Transfer, Chlorine Application, Crop Spraying, Fertilizer Application, Aircraft De-icing, Pest Control, Soft Wash

Features

• High-Pressure Capability: Handles up to 560 PSI for demanding spraying applications.
• Durable Construction: Anodized aluminum body and stainless-steel components for long-lasting performance.
• Versatile Applications: Ideal for horticulture, agriculture, pest control, turf care, and more.
• Compact Design: Internally manifolded for efficient operation and easy maintenance.
• Gear Reduction Drive: Compatible with 1 in. shaft gas engines (8–20 HP) for smooth operation.

Specifications

• Bar: 38
• Bypass Port: 3/4 in. HB
• Dimensions: 9.5 in. L x 12.5 in. W x 10.5 in. H
• Drive Configuration: Gear Reduction for 1 in. Shaft Gas Engine
• GPM: 15
• Inlet Port: 1-1/4 in. HB
• Lubrication: 23 oz. Udor Lube 40W Premium Pump Oil
• Maximum Pressure: 560 PSI
• Maximum RPM: 550
• Model: KAPPA 55 VAGR1
• Outlet Ports: (2) 1/2 in. HB

Downloads

Specification Sheet (PDF Download)
