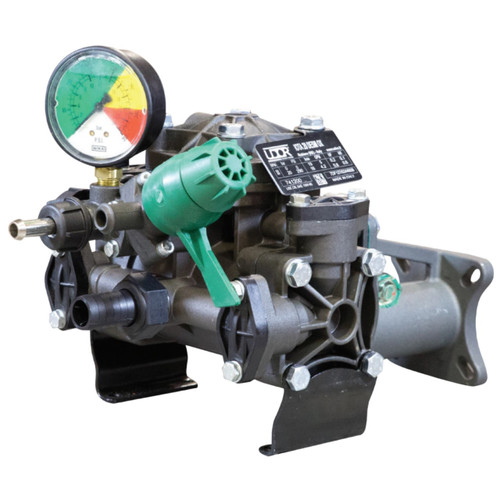

Udor IOTA 20 GR3/4 3/4 in. Diaphragm Pump, 2 cylinders, 5 GPM, 300 PSI

Udor IOTA 20 GR3/4 3/4 in. Diaphragm Pump, 2 cylinders, 5 GPM, 300 PSI

The Udor IOTA 20 GR3/4 is a compact, low-pressure diaphragm pump designed for lawn care, horticultural, agricultural, nursery, pest control, and turf spraying applications. Built with anodized aluminum and stainless steel construction, this pump offers durability and corrosion resistance. It includes an internal pulsation dampener for smooth operation. Delivering a maximum flow of 5 GPM and pressure up to 300 PSI, the IOTA 20 ensures reliable performance for small-scale spraying tasks. Its gear reduction drive configuration is compatible with 3/4 inch shaft gas engines rated between 4 and 6.5 HP.

Industries: Lawn Care, Fire Fighting, Orchard/Nursery Spraying, De-Mucking, Decontamination, White Washing, Aquatic Plant Control, Spray Insulation, Hydrostatic Testing, Fluid Transfer, Chlorine Application, Crop Spraying, Fertilizer Application, Aircraft De-icing, Pest Control, Soft Wash

Features

• Compact Design: Internally manifolded for efficient operation and easy maintenance.
• Durable Construction: Anodized aluminum and stainless-steel components for long-lasting performance.
• Smooth Operation: Includes pulsation dampener for consistent flow.
• Versatile Applications: Ideal for lawn care, horticulture, agriculture, and pest control.
• Gear Reduction Drive: Compatible with 3/4 inch shaft gas engines (4–6.5 HP) for smooth operation.

Specifications

• Bar: 20
• Bypass Port: 5/8 in. HB
• Dimensions: 7.5 in. L x 12.5 in. W x 8.5 in. H
• Drive Configuration: Gear Reduction for 3/4 in. Shaft Gas Engine
• GPM: 5
• Inlet Port: 3/4 in. HB
• Lubrication: 7 oz. Udor Lube 40W Premium Pump Oil
• Maximum Pressure: 300 PSI
• Maximum RPM: 600
• Model: IOTA 20 GR3/4
• Outlet Port: 3/8 in. HB

Downloads

Specification Sheet (PDF Download)
